Gigabit 5-port Industrial POE switch (M12 Interface)

Gigabit 5-port Industrial POE switch (M12 Interface)

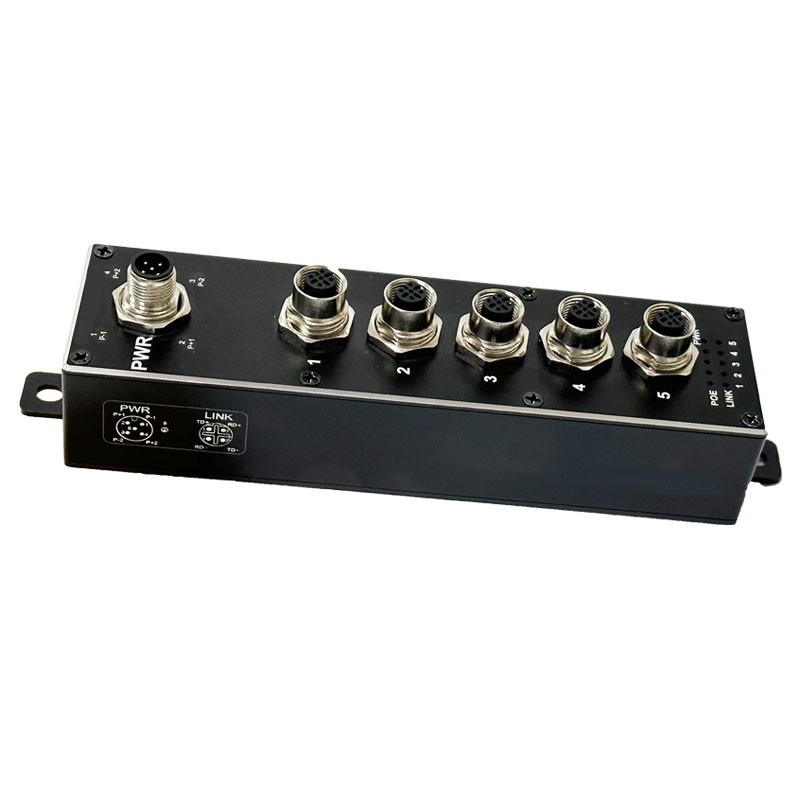

NEU1050GP-M12 is a converging integrated industrial Ethernet switch independently developed by our company which is designed for railway application, with rugged and high EMC performance. NEU1050GP-M12 is mainly developed for the application of point-to-point networks, star networks, tree networks, and chain networks in the industrial field, widely suitable networking solutions for rolling stock and wayside applications. Supports 1 10/100/1000Base-TX uplink port and 4 10/100/1000Base-TX downlink ports. It has a high-performance switching engine with an IP67 protection-grade casing, a fanless design and an efficient aluminum alloy casing heat dissipation surface.
The M12 Plug redundant power input end has over-current, over-voltage, and EMC protection. The M12 Socket has excellent Sealing, solidity, and EMC protection properties enabling the series of products to adapt to harsh and dangerous industrial environments. Then, it can provide reliable and convenient solutions for users' Ethernet device networking.

Model

Description

NEU1050GP-M12

Gigabit un-managed 1-way M12 X-coded female uplink connection port + 4-way M12 X-coded female downlink POE Industrial transit dedicated PoE switch - wall-mounted installation - DC48~58V redundant power supply M12 D-coded Plug connection port - IP40 protection ( Optional IP67) - wide temperature (-40℃-75℃).

AC to DC power supply and M12 Plug connecting cable are not included.

Product introduction
Model No.	NEU1050GP-M12
Product Name	Industrial Ethernet 1000M series rail transit dedicated PoE switch
Product Description	1-way 1000M uplink RJ45+4-10/100/1000M downlink port
Port Description	5-M12 X-coded 8-pin Socket connection ports
Ethernet interface
RJ-45 Port Connector Type	10/100/1000BaseT(X) automatic detection, full/half duplex MDI/MDI-X adaptive
Power Parameters
Power	l Access terminal: M12 A-coded 5-core male terminal block l Power Input (DC): 48~58VDC (Dual power), support reverse connection protection
LED Indicator	l Power Indicator：Red l Interface indicator: Link (green) POE(yellow)
POE
POE standard	l PoE protocol: IEEE802.3af/ IEEE802.3at l PoE port: 1-4 ports support PoE l Power supply: 1/2+;3/6-
POE output power	l Maximum power 15.4W (IEEE 802.3af) l Maximum power 30W (IEEE 802.3at)
Standards
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x ;IEEE802.3af; IEEE802.3at;
Twisted Pair	l 10BASE-T: Cat3,4,5 UTP(≤100 meter) l 100BASE-TX: Cat5 or later UTP(≤100 meter) l 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Switch Properties
Transmission Method	Store and Forward
MAC Table Size	2K
Packet Buffer Size	2Mbit
Bandwidth	10G
Switching Delay	＜10μs
Power Consume	＜125W
Physical Characteristics
IP Rating	IP40 (Optional IP67)
Enclosure	Aviation standard aluminum alloy
Installation	Wall-mounted rail
Weigh	0.65kg
Dimensions (W x H x D)	203x 48x 50mm
Environmental Limits
Working temperature	-40 to 75℃ （-40～167 °F）
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD), EN50155
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD):±8kVContact, ±8kV Indirect, ±15kVAir discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): Power: ±4kV; Data: ±2kV IEC(EN)61000-4-5(Surge): Power: ±4kV CM/±2kV DM; Data: ±4kV/±2kV DM; IEC(EN)61000-4-6(RF conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction): 30V cont. 300V, 1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU1050GP-M12 switch
Documentation	1 x quick installation guide 1 x warranty card
