2-port RJ45+1-port optical Gigabit Industrial Ethernet Media Converter

2-port RJ45+1-port optical Gigabit Industrial Ethernet Media Converter

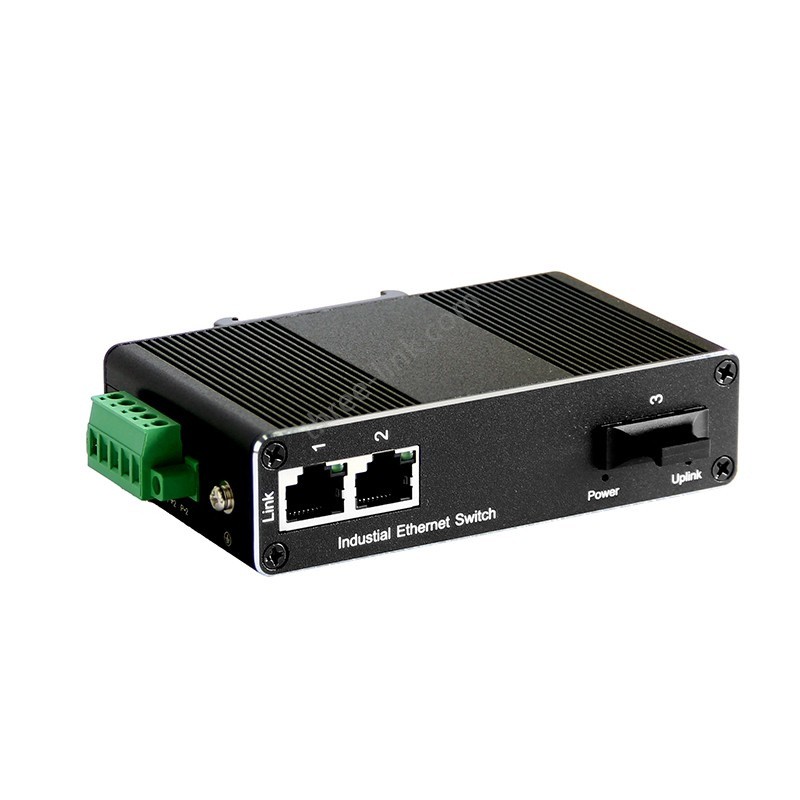

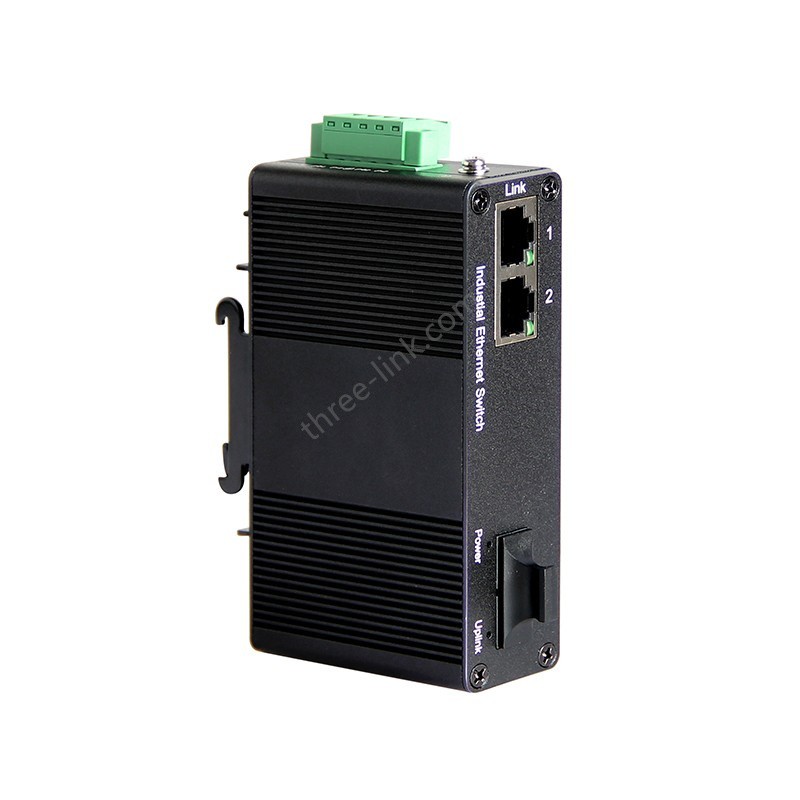

NEU1021G is a photoelectric converging integrated industrial Ethernet Media Converter independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks, and chain networks in the industrial field. It supports 2-port 10/100/1000Base-TX and 1-port 1000Base-FX, optional SFP, SC, ST, and FC interface, and the longest optical communication distance can reach 80KM.
In addition to its compact size, it has a high-performance switching engine, a wavy aluminum alloy shell with IP40 protection level, a fanless design and efficient heat dissipation surface, and an installed power input terminal over-current, over-voltage, the NEU1021G Series features DC9-52 V redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -40 to 75°C available. The NEU1021G Series has also passed a 100% burn-in test to ensure it will function reliably in the field. Therefore, it can provide reliable and convenient solutions for users’ Ethernet equipment networking.

Product introduction
Product Name	2-port RJ45+1-port optical Gigabit Industrial Ethernet Media Converter
Model No.	NEU1021G
Product description	2-port RJ45 downlink+1-port optical(1*9)
Ethernet interface
RJ45 Port	10/100/1000BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive
Optical port	1000Base-FX port(SC/FC/ST/SFP optional)
Port Description	2-port RJ45+1-Port optical 19 (Single-Mode (1310nm) ,Dual,SC 20km）（SC/FC/ST/SFP optional） (19 is optional with “ Multi-Mode (1310nm) ,Duplex,SC 2km, or optional with “1310nm/A，1550nm/B”)
Power Parameters
Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC9 to 52V redundant power support reverse connection protection
LED Indicator	Power: Green Link: Green
Standards
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x; IEEE802.3af; IEEE802.3at;
Twisted Pair	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Switch Properties
Processing Type:	Store and Forward
MAC Table Size	2K
Packet Buffer Size	2Mbit
Bandwidth	10G
Switching Delay	＜10μs
Power Consume	＜5W
Physical Characteristics
Protection level	IP40
Enclosure	Wavy aluminum alloy

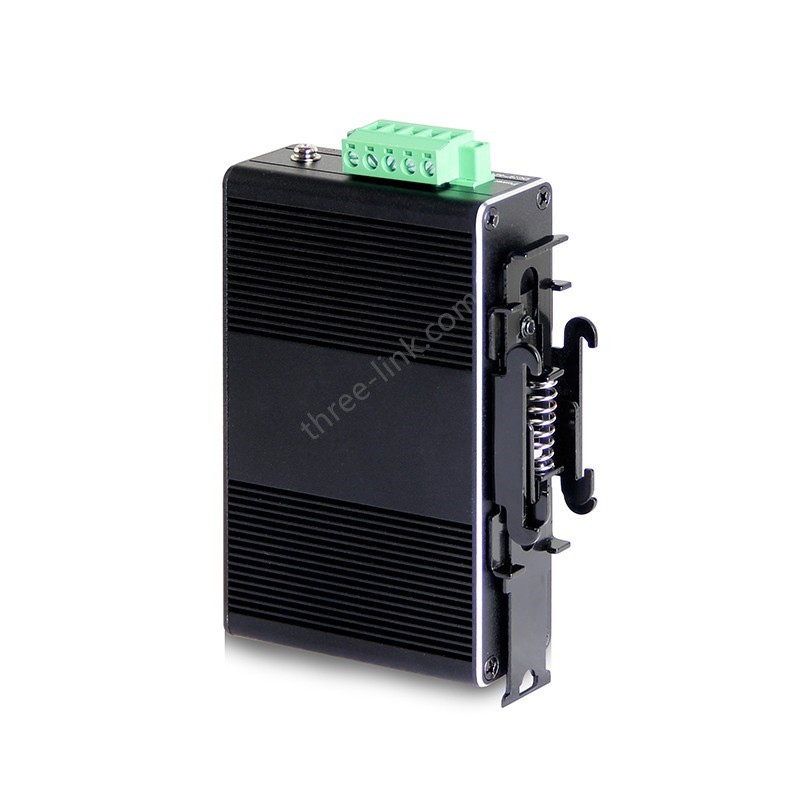

Installation	Push-in DIN rail
Weigh	0.4kg
Dimensions	115x96x30mm （length x width x height)
Environmental Limits
Working temperature	-40～75℃ （-40～167 °F）
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	2years
Package Contents
Device	1 x NEU1021G media converter
Documentation	1 x quick installation guide 1 x warranty card
