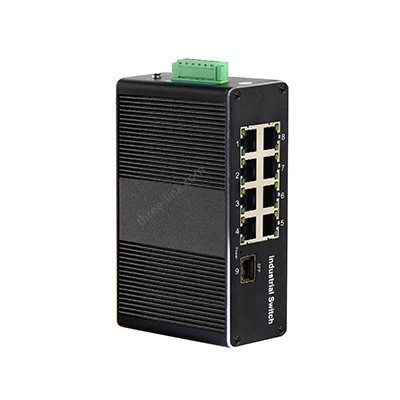

Gigabit 8-port RJ45+1G SFP, 10-port Unmanaged Dual Optical Series

Specification:

Model No.: NEU1081G

RJ45 port: 8port-10/100/1000Base-TX

Optical port: 1port-1000Base-FX

Port Description:

                RJ45 port: 10/100/1000BaseT（X）Automatic detection, Full/half duplex MDI/MDI-x adaptive

         Optical port: 1000BaseFX-SFP Port

Network Protocols:

         IEEE802.3 10BASE-T;   IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

         IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x; IEEE802.3af; IEEE802.3at;

Performance Specification：

               Transmission: store and forward     MAC address: 8K

               Packet Buffer Memory: 2.5Mbit        Bandwidth: 20G

               Switching Delay: ＜10 μs                 Power Consume: ＜8Watts

Power:

   Access Terminal: Terminal

   Input Voltage: DC 9 ~ 52V (dual power redundant backup) to support reverse protect

Working environment:

        Working temperature: -40～75℃ （-40～167 °F）

        Storage temperature: -40～85℃ （-40～185 °F）

        Relative Humidity: 5%~95 %( no condensation)

Industrial standard:

      EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A

      EMS :IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±15kV air discharge

      IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)

      IEC(EN)61000-4-4(EFT):power line:±6kV;data line:±4kV

      IEC(EN)61000-4-5(Surge):power line:±4kV CM/±2kV DM; data line:±2kV

      IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz)

      IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

      IEC(EN )61000-4-8

      Shock：IEC 60068-2-27

      Freefall：IEC 60068-2-32

       Vibration：IEC 60068-2-6

Mechanical properties:

      Enclosure: IP40 Wavy aerospace standard aluminum alloy

      Installation: DIN-rail

      Weight: 0.6kg

      Size: 150 x 130 x 53 mm (length x width x height)
