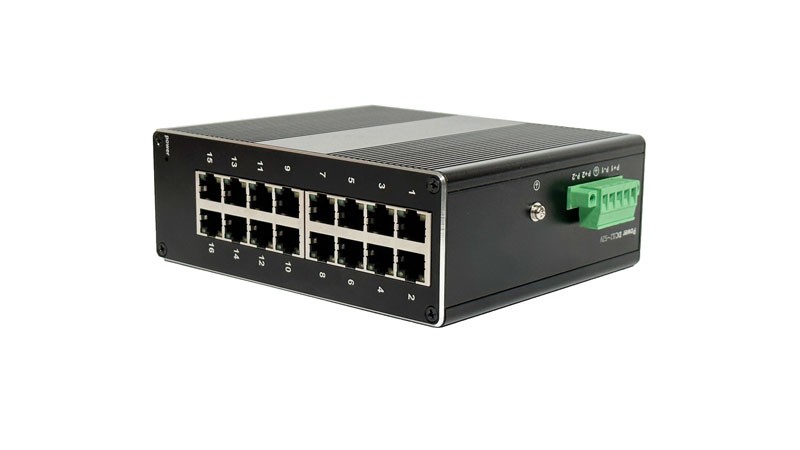

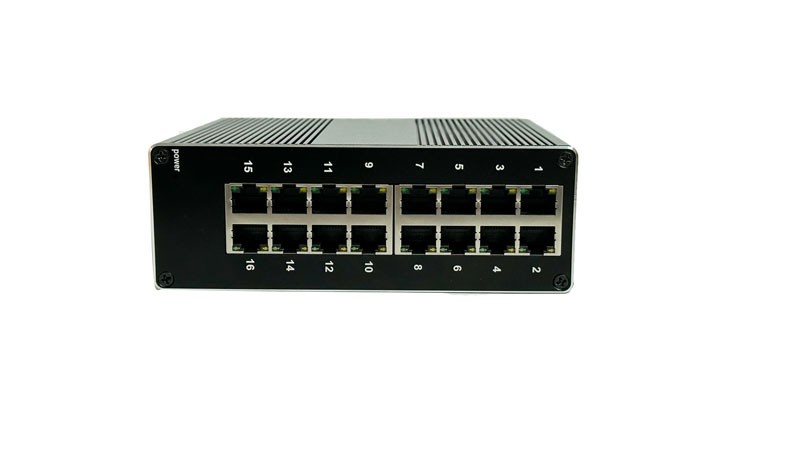

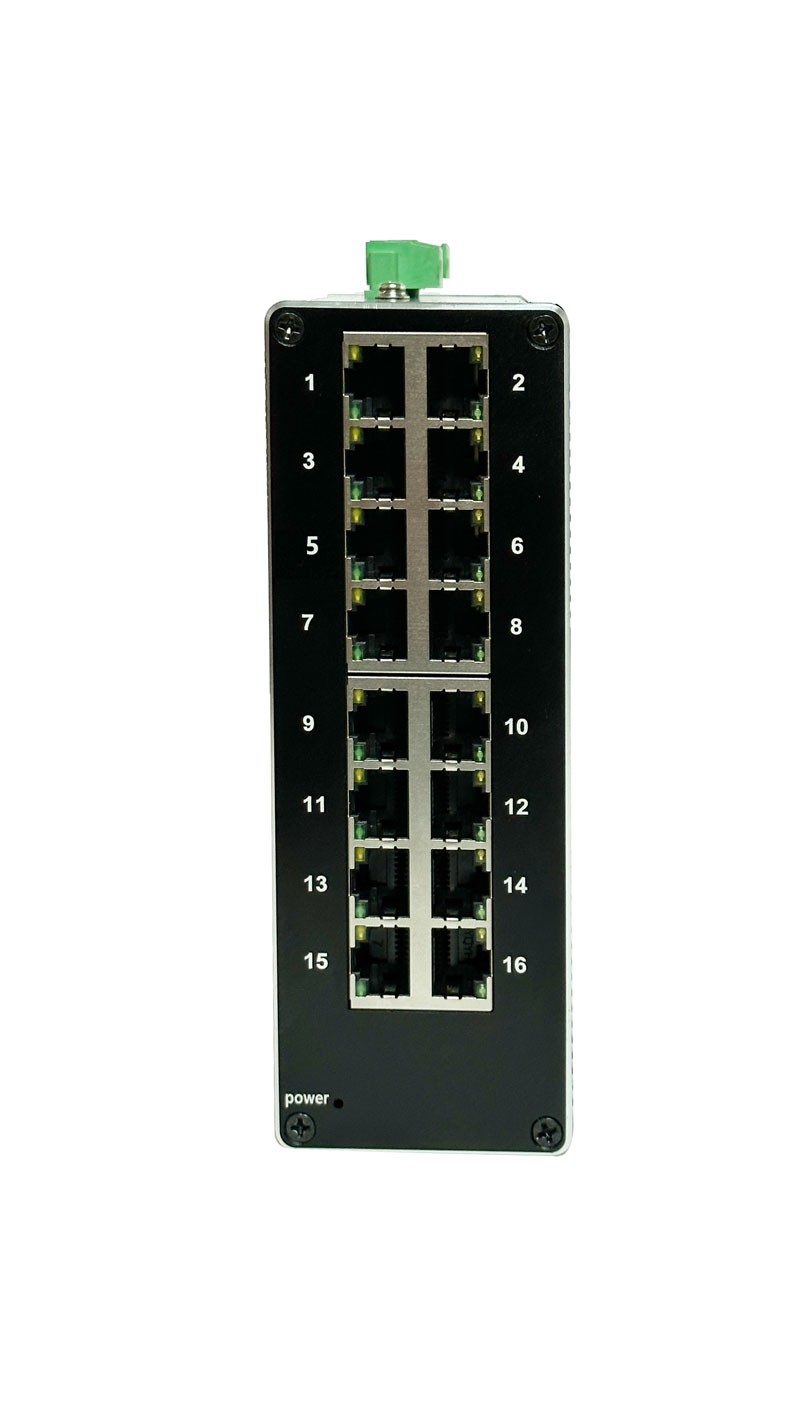

NE10160G

NE10160G is a converged integrated industrial Ethernet POE switch independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks and chain networks in the industrial field. Support 16 10/100/1000Base-TX POE electrical ports. Its high-performance switching engine, with IP40 protection level shell, fanless design, efficient wavy aluminum alloy shell heat dissipation surface, power input overcurrent, overvoltage and EMC protection, R145 port excellent EMC protection performance, so that the series products can adapt to harsh and dangerous industrial environments. Provide convenient solutions for users' Ethernet device networking

Technical parameters

Product model	NE10160G
Electrical port description	16 10/100/1000Base-TX (RJ45)
Port description	Electrical port: 10/100/1000BaseT (X) Automatic detection, full/half duplex MDI/MDI-X adaptive
Network protocol	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x;
Switch properties	Transmission mode: Store-and-forward MAC address :8K Cache: 4Mbit backplane bandwidth: 36 Gbit/s Switching delay: <10μs Power consumption: Maximum 15W
Class of protection	IP40
LED index	Power indicator: Red power indicator Port indicator: Green is the data indicator
Power source	Access terminal: 5P wiring terminal Input voltage: DC 12~52V (Dual power supply redundancy) Supports reverse protection
Working environment	Operating temperature: -40 ~ 75 °C (-40 ~ 167 °F) Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F) Relative humidity: 5% ~ 95%(no condensation)
Industry standard	EMI：FCC Part 15 Subpart B Class A，EN 55032 Class A EMS :IEC(EN)61000-4-2(ESD):±8kV contact discharge,±8kV indirect discharge,±15kV air discharge IEC (EN) 61000-4-3 (RS): 10 v / m (80 ~ 1000 mhz) IEC(EN)61000-4-4(EFT): Power cables :±4kV; Data cable :±2kV IEC(EN)61000-4-5(Surge): Power cables :±4kV CM/±2kV DM; Data line :±4kV CM/±2kV DM; IEC(EN)61000-4-6(RF conduction):3V(10kHz ~ 150kHz),10V(150kHz ~ 80MHz) IEC(EN)61000-4-16(common mode conduction):30V cont.300V,1s IEC(EN )61000-4-8 Shock：IEC 60068-2-27 Freefall：IEC 60068-2-32 Vibration：IEC 60068-2-6
Mechanical property	Housing: wavy aviation standard aluminum alloy Installation: press-in rail installation Weight: 1 Kg Dimensions: 150x 126x 53mm (L x W x H)
