6-port RJ45 Fast unmanned industrial switch

Product Name

6-port RJ45 Fast Unmanaged Industrial Ethernet Switch

Model No.

NEU1060F

Product description

4-port RJ45 downlink+2-port uplink

Ethernet interface

RJ45 Port

10/100BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive

Optical port

100Base-FX port(SC/FC/ST/SFP optional)

Port Description

6-port RJ45

Power Parameters

Power

Connection: 1 removable 5-contact terminal block(s)

Input voltage: DC9 to 52V redundant power support reverse connection protection

LED Indicator

Power: Green

Link: Green

Standards

Network Protocols

IEEE802.3 10BASE-T;100BASE-T IEEE802.3i 10Base-T;IEEE802.3u;

 IEEE802.3x;

Twisted Pair

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

Switch Properties

Processing Type:

Store and Forward

MAC Table Size

2K

Packet Buffer Size

1Mbit

Bandwidth

1G

Switching Delay

＜10μs

Power Consume

＜3W

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

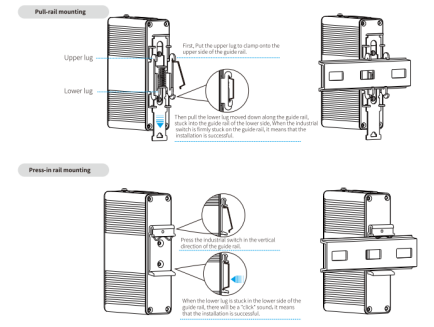

Installation

Push-in DIN rail

Weigh

0.35kg

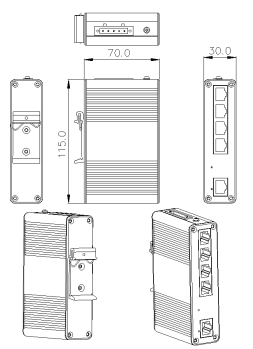

Dimensions

115x70x30mm （length x width x height)

Environmental Limits

Working temperature

-40～75℃ （-40～167 °F）

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air

IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV

IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5years

Package Contents

Device

1 x NEU1060F switch

Documentation

1 x quick installation guide

1 x warranty card

NEU1060F

6-port Fast Unmanaged Industrial Ethernet Switch- 35mm DIN rail - DC9~52V power supply - Wide temperature (-40℃-75℃).

AC to DC power supply is not included.
