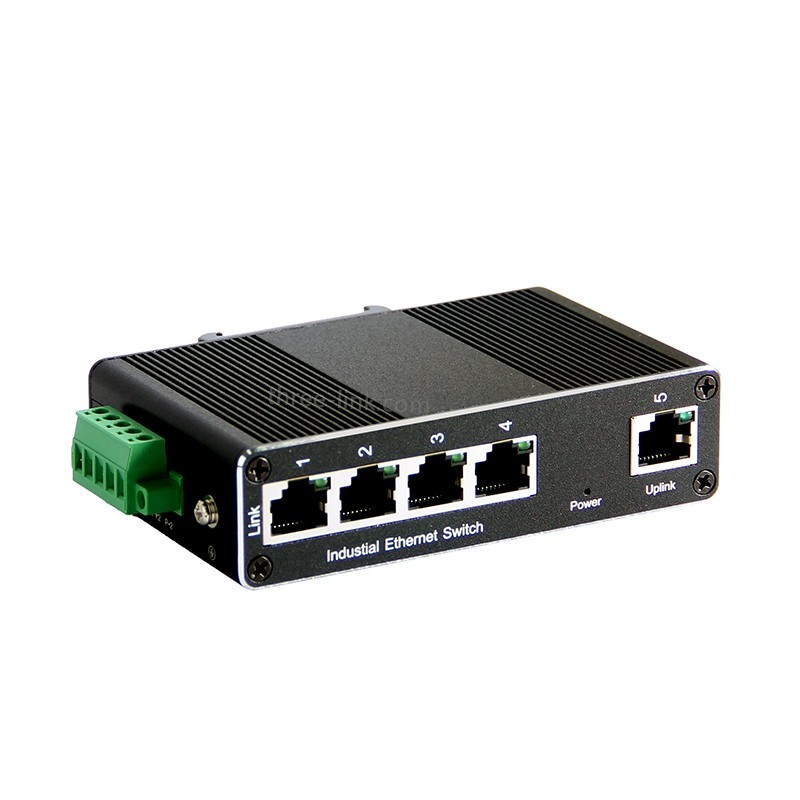

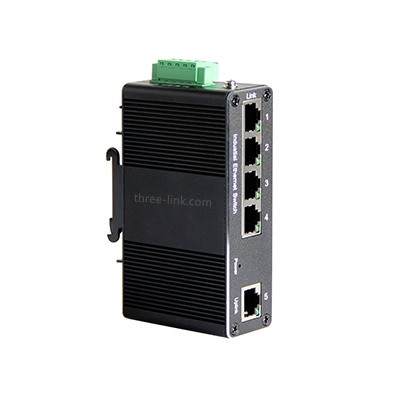

5-10/100/1000Mbps Base TX Fast unmanaged Industrial switch

★The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★Using high-performance chips and the latest industrial design
★Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★Supports redundant DC 9-52V wide voltage and reverse connection protection.
★The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
★ Long service life, 5years warranty
★Din-rail installation (in the control cabinet or directly on the automation equipment).
★Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.

Product Introduction
Model No.	NEU1050F
Product description	5-port Fast unmanaged Industrial Ethernet Switch
Port Description	5-port RJ45 connector
Ethernet interface
RJ45 Ports	10/100BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive
Standards
Network Protocols	IEEE802.3 10BASE-T; 100BASE-T IEEE802.3i 10Base-T;IEEE802.3u;IEEE802.3x;
Twisted Pair	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Switch Properties
Processing Type	Store and Forward
MAC Table Size	2K
Packet Buffer Size	1Mbit
Bandwidth	1G
Switching Delay	＜10μs
Power Consume	＜3Watts
Power Parameters
Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC9 to 52V redundant dual inputs support reverse connection protection
LED Indicator	Power: Green Link: Green
Physical Characteristics
Enclosure	Wavy aluminum alloy
Protection level	IP40

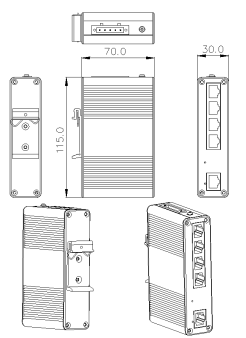

Dimensions	115x70x30mm （length x width x height)
Weigh	0.35kg

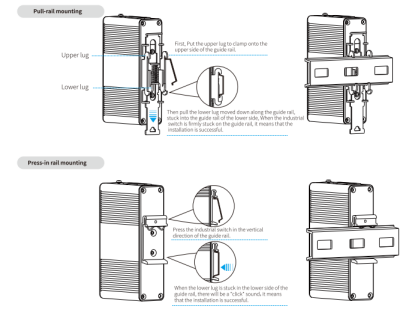

Installation	Push-in DIN rail
Environmental Limits
Operating Temperature	-40～75℃ （-40～167 °F）
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55032 Class A
EMS	IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU1050F switch
Documentation	1 x quick installation guide 1 x warranty card
