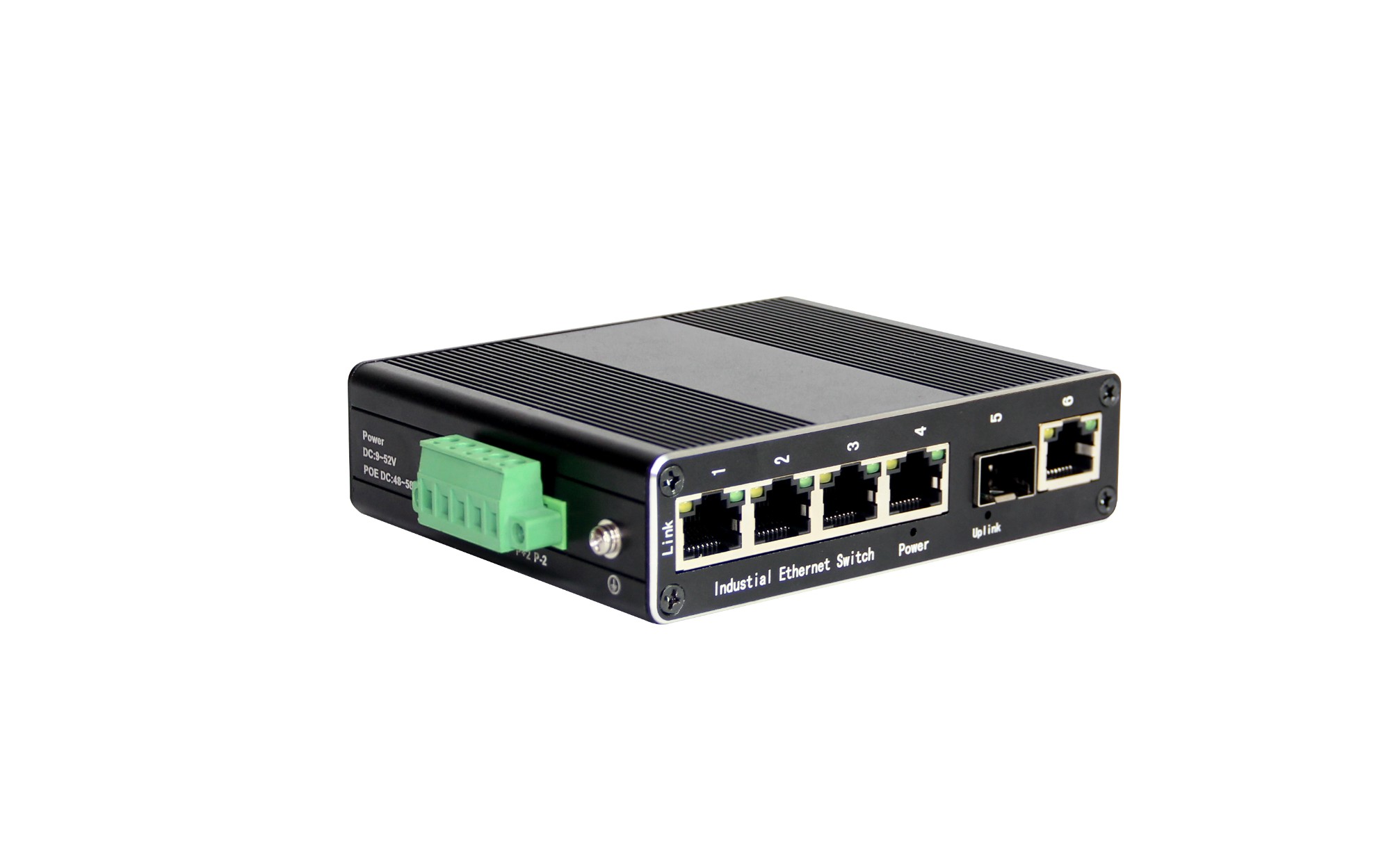

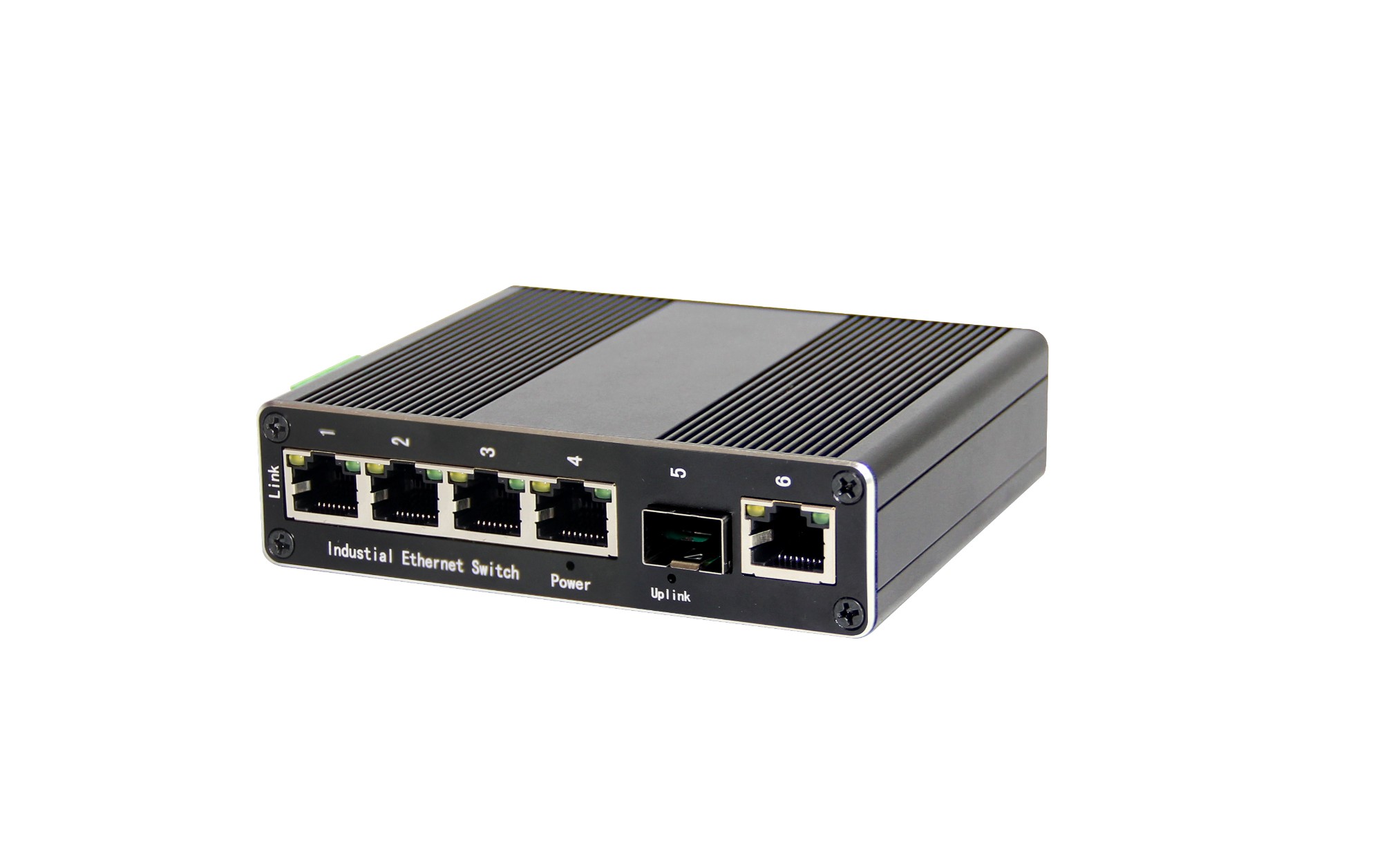

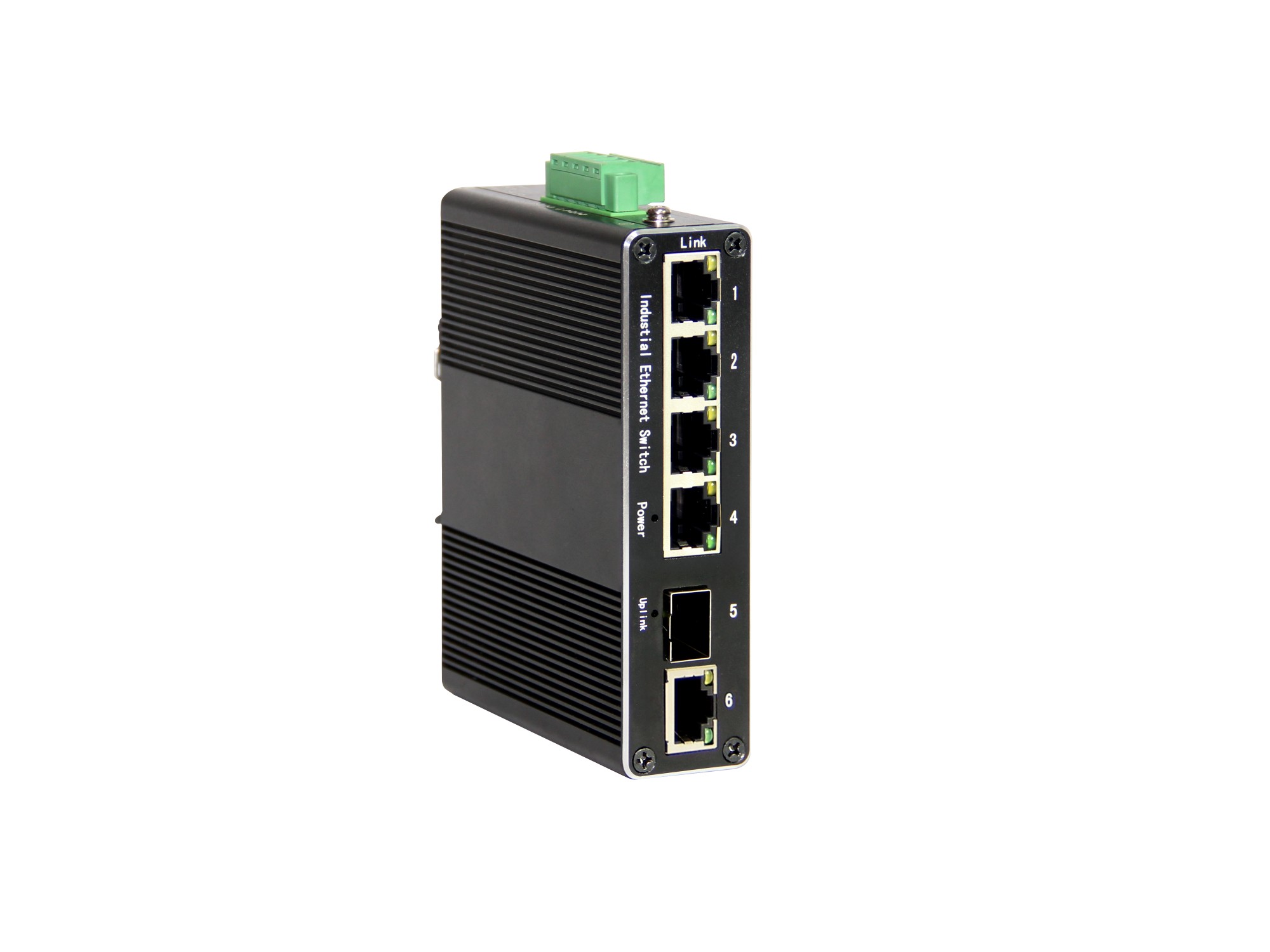

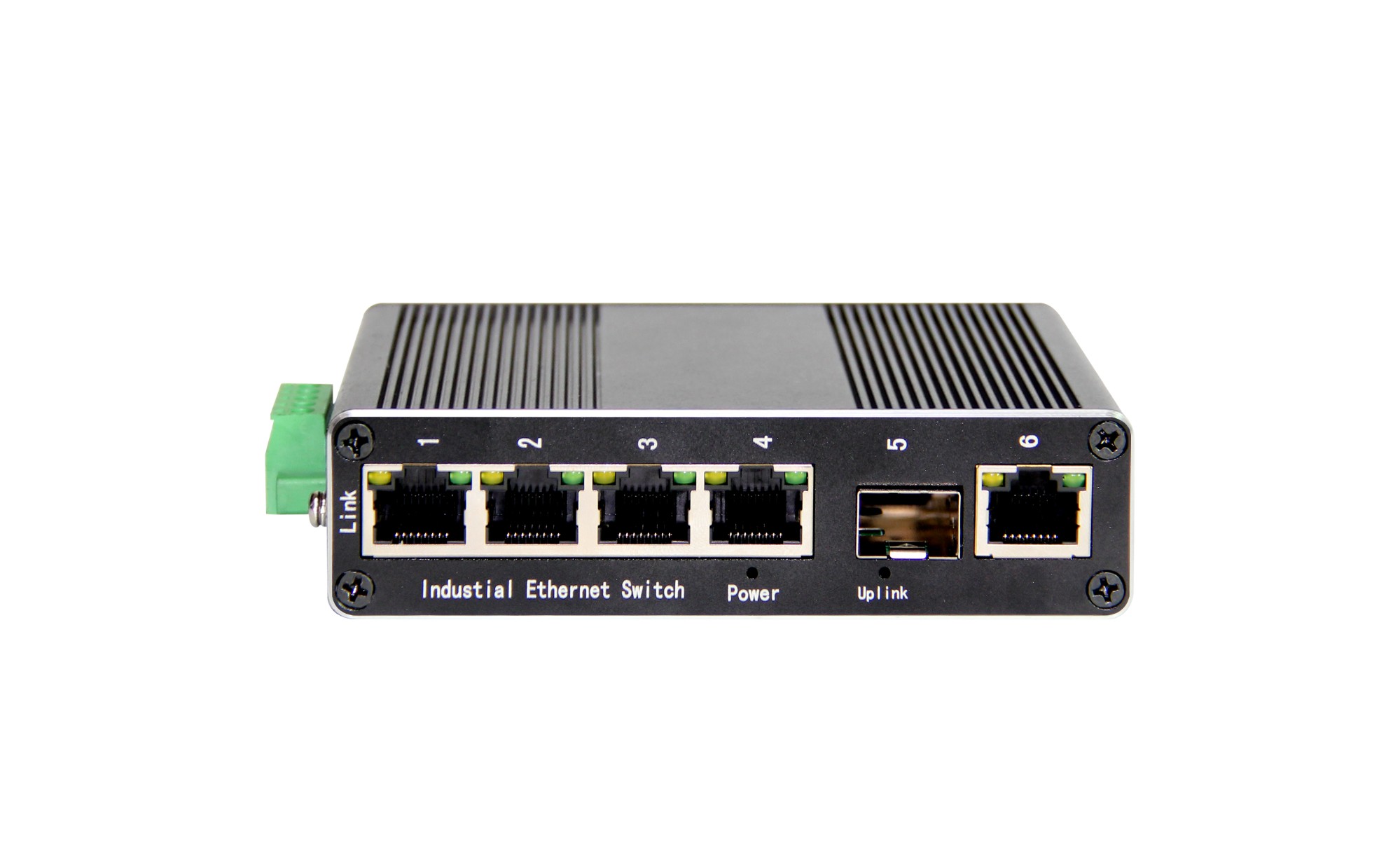

5-port RJ45+1-100M/1G/2.5GBase FX Gigabit unmanaged Industrial Switch

★The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★Using high-performance chips and the latest industrial design
★Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★Supports redundant DC9-52V wide voltage and reverse connection protection.
★The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
★ ★ Long service life, average trouble-free time of 300,000 hours, 5-year warranty.
★Din-rail installation (in the control cabinet or directly on the automation equipment).
★Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.

Specification

Product Introduction

Model

NEU1051GZ-SFP

Product description

5-port RJ45+1-100M/1G/2.5GBase FX Gigabit unmanaged Industrial Switch

Ethernet interface

RJ45 Port

5-10/100/1000Base-TX

Optical Port

1-100M/1G/2.5GBaseFX

Port Description

 RJ45 port: 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optical port100M/1G/2.5GBaseFX SFP

Standards

 Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x; IEEE802.3af; IEEE802.3at;

Switch Properties

Transmission Method

Store and forward

MAC Address

 4K

Cache

2Mbit

Bandwidth

20G

Switching Delay

<10μs

Power consumption

<5W

Power Parameters

LED Indicator

Power: Green

Uplink: Green

Interface indicator: Left of RJ45:Orange(POE)   Right of RJ45: Green(Data light)

Power

Connection: 1 removable 5-contact terminal block(s)

Input voltage: DC9 to 52V redundant dual inputs support reverse connection protection

Environmental Limits

Operating Temperature

-4075 °C-40167 °F



Storage Temperature

-4085 °C-40185 °F

Ambient Relative Humidity

5%95%(non-condensing

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class AEN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air

IEC(EN)61000-4-3(RS):10V/m(801000MHz)

IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV

IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz150kHz),10V(150kHz80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Physical Characteristics

Enclosure

Wavy aluminum alloy

Protection level

IP40

Dimensions

115x86x30mm length x width x height)

Weigh

0.45kg

Installation

Push-in DIN rail



Model Info.

Model

Description

NEU1051GZ-SFP

5-port RJ45+1-1.25G/2.5G SFP Gigabit 2.5G Unmanaged Industrial Media Converter - 35mm Din-rail design- DC9~52V power supply- Wide Temperature: -40℃-75℃

SFP Module and AC to DC power adapter are not included.

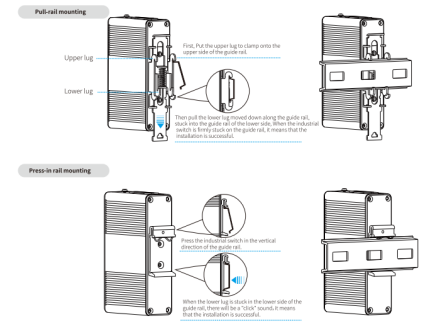

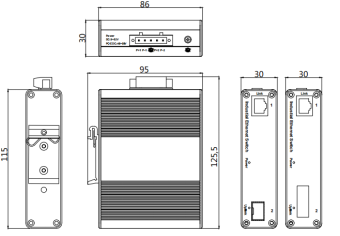

Installation Dimension                                                                                       Installation Methods

image.png                      image.png
