★The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★Using high-performance chips and the latest industrial design
★Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★Supports redundant DC 9-52V wide voltage and reverse connection protection.
★The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
★Long service life, MTBF 300,000 hours, 5-year warranty
★Din-rail installation (in the control cabinet or directly on the automation equipment).
★Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.
Specification
Product introduction | |
Model No. | NEU1021GZ |

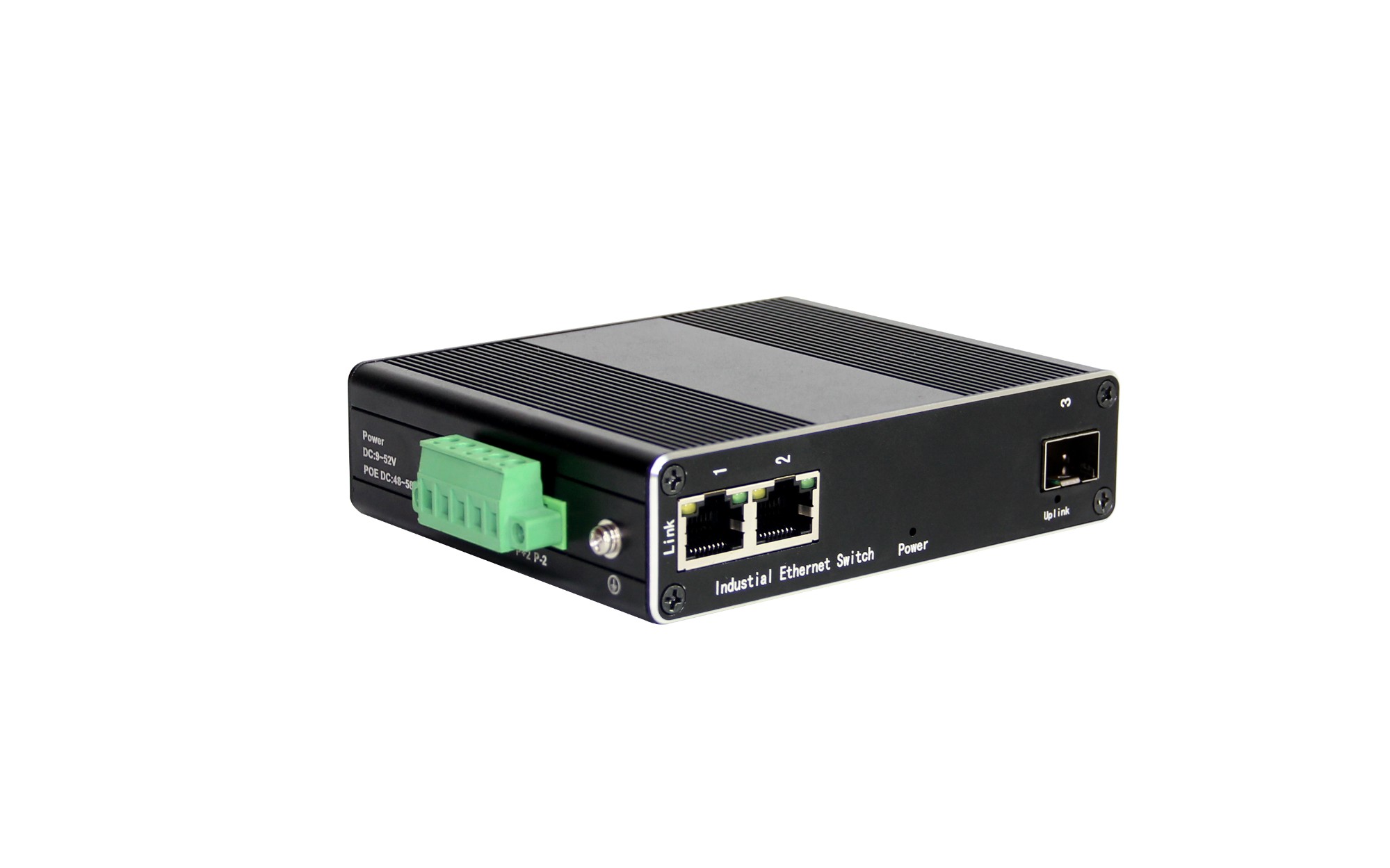

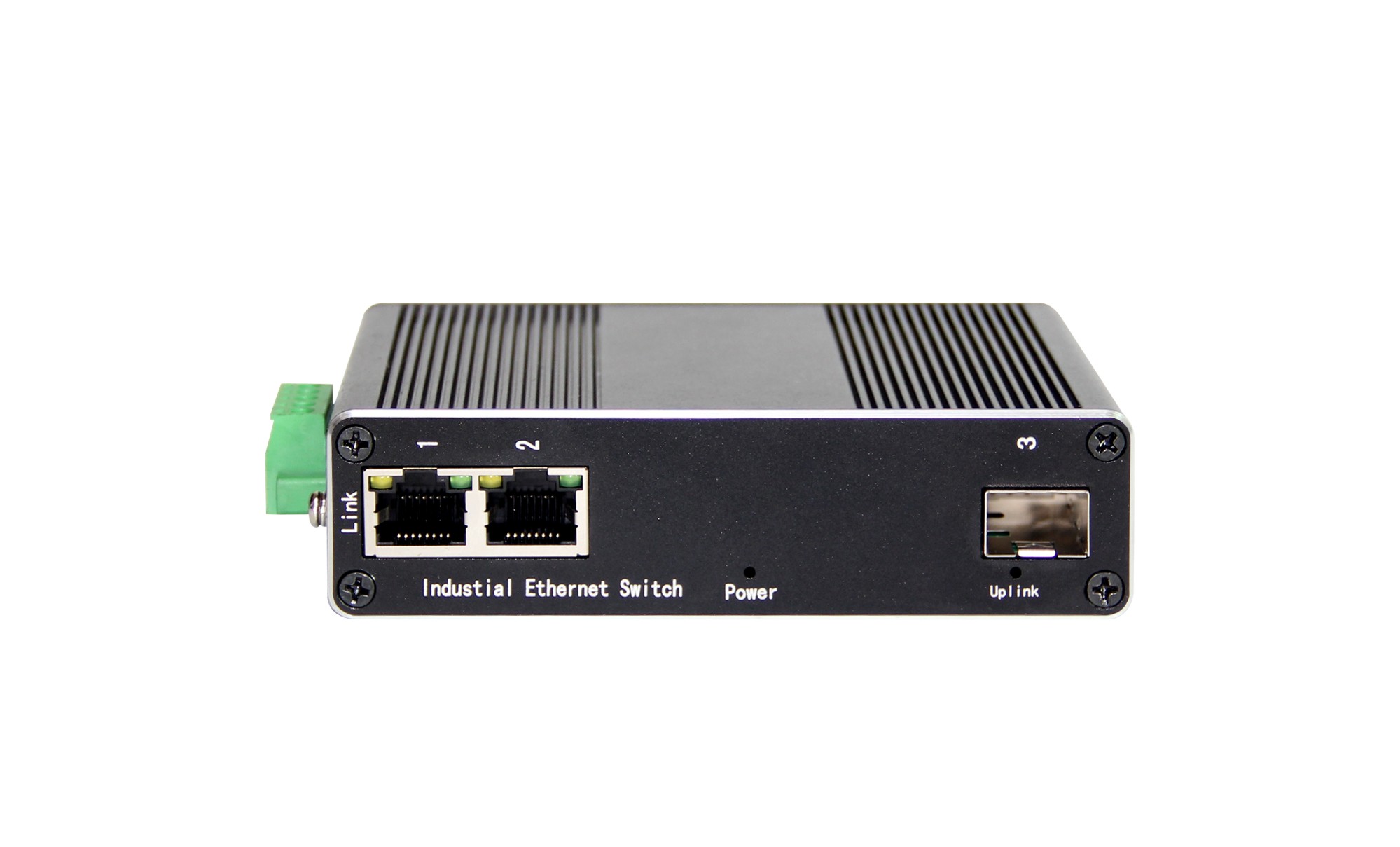

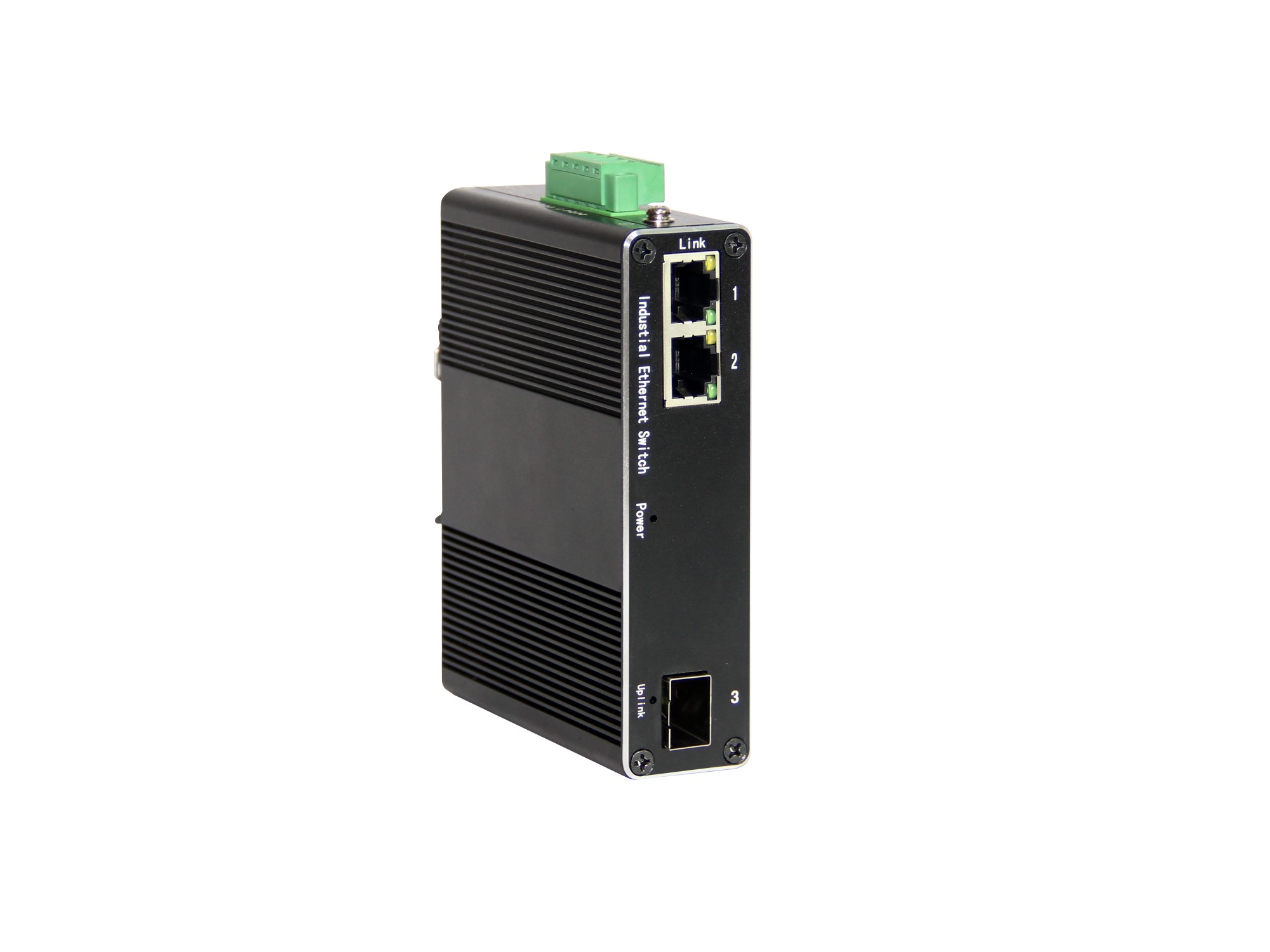

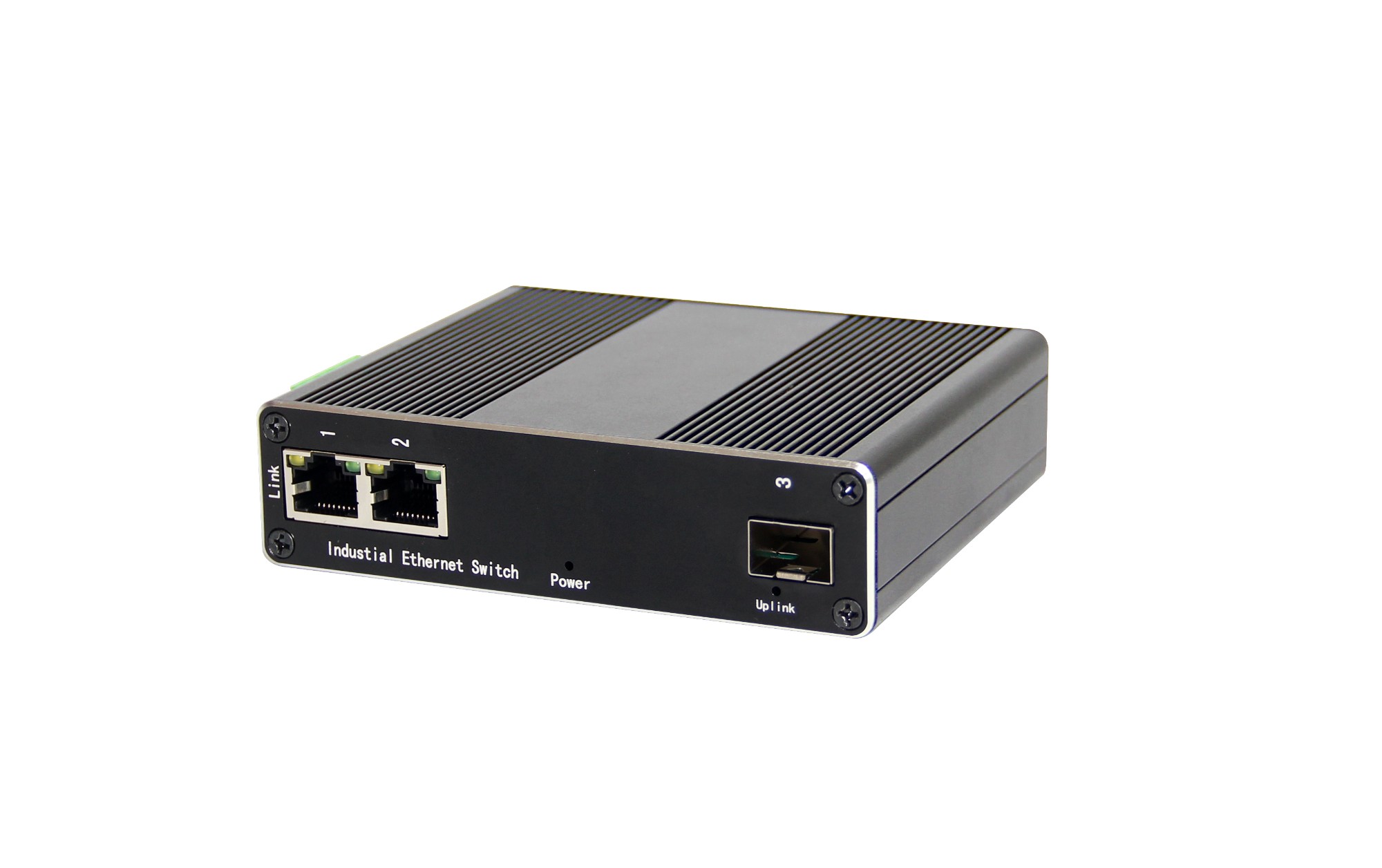

Product description | 2-port RJ45+1-100M/1G/2.5GBase FX Gigabit unmanaged Industrial Switch |
Ethernet interface | |
RJ45 Port | 2-10/100/1000Base-TX |
Optical port | 1-100M/1G/2.5GBaseFX |
Port Description | RJ45 port: 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive Optical port:100M/1G/2.5GBaseFX (Optional SC/SFP port) |
Power Parameters | |
Power | Connection: 1 removable 5-contact terminal block(s) Input voltage: DC9 to 52V redundant dual inputs support reverse connection protection |
LED Indicator | Power: Green Uplink: Green Interface indicator: Left of RJ45:Orange(POE) Right of RJ45: Green(Data light) |
Standards | |
Network Protocols | IEEE802.3 10BASE-T;IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab;1000Base-T;IEEE802.3z;IEEE802.3bz;;1000Base-X;2500Base-X;IEEE802.3x; |
Twisted Pair | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Optional POE | Output Power: IEEE 802.3af maximum power 15.4W IEEE 802.3at maximum power 30W POE port automatically recognizes af/at POE power supply pins: corresponding pins V+ (1, 2) V- (3, 6) |
Switch Properties | |
Processing Type: | Store and Forward |
MAC Table Size | 4K |
Packet Buffer Size | 2Mbit |
Bandwidth | 20G |
Switching Delay | <10μs |
Power Consume | <5W |
Physical Characteristics | |
Protection level | IP40 |
Enclosure | Wavy aluminum alloy |
Installation | Push-in DIN rail |
Weigh | 0.40kg |
Dimensions | 115x86x30mm (length x width x height) |
Environmental Limits | |
Working temperature | -40~75℃ (-40~167 °F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
Safety | EN 62368-1(LVD) |
EMI | FCC Part 15 Subpart B Class A,EN 55022 Class A |
EMS | IEC(EN)61000-4-2(ESD):±4kV Contact discharge,±8kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT): power line:±2kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±2kV CM/±1kV DM; data:±1kV IEC(EN)61000-4-6(RF conduction):3V(10kHz~150kHz),10V(150kHz~80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8 |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
MTBF | |
Time | 300 000hrs |
Warranty | |
Warranty Period | 5years |
Package Contents | |
Device | 1 x NEU1021GZ switch |
Documentation | 1 x quick installation guide 1 x warranty card |
✪Installation Dimension ✪Installation Methods
◎Model Info.
Model | Description |
NEU1021GZ-SFP | 2-port RJ45+1-1.25G/2.5G SFP Gigabit 2.5G Unmanaged Industrial Media Converter 35mm Din-rail design- DC9~52V power supply- Wide Temperature -40℃-75℃ SFP Module and AC to DC power adapter are not included. |
NEU1021GZ-SC20 | 2-port RJ45+1-1.25G/2.5G optical 1*9 (Single Mode(1310mm), Dual, SC20) Gigabit 2.5G Unmanaged Industrial Media Converter 35mm Din-rail design- DC9~52V power supply- Wide Temperature -40℃-75℃ AC to DC power adapter is not included. |
NEU1021GZ-SC2 | 2-port RJ45+1-1.25G/2.5G optical 1*9 (Multi Mode(1310mm), Dual, SC2) Gigabit 2.5G Unmanaged Industrial Media Converter 35mm Din-rail design - DC9~52V power supply - Wide Temperature -40℃-75℃ AC to DC power adapter is not included. |
NEU1021GZ-SC20A | 2-port RJ45+1-1.25G/2.5G optical 1*9 (Single Mode(1310mm/A), Single, SC20) Gigabit 2.5G Unmanaged Industrial Media Converter 35mm Din-rail design- DC9~52V power supply- Wide Temperature -40℃-75℃ AC to DC power adapter is not included. |
NEU1021GZ-SC20B | 2-port RJ45+1-1.25G/2.5G optical 1*9 (Single Mode(1550mm/B), Single, SC20) Gigabit 2.5G Unmanaged Industrial Media Converter 35mm Din-rail design- DC9~52V power supply- Wide Temperature -40℃-75℃ AC to DC power adapter is not included. |
