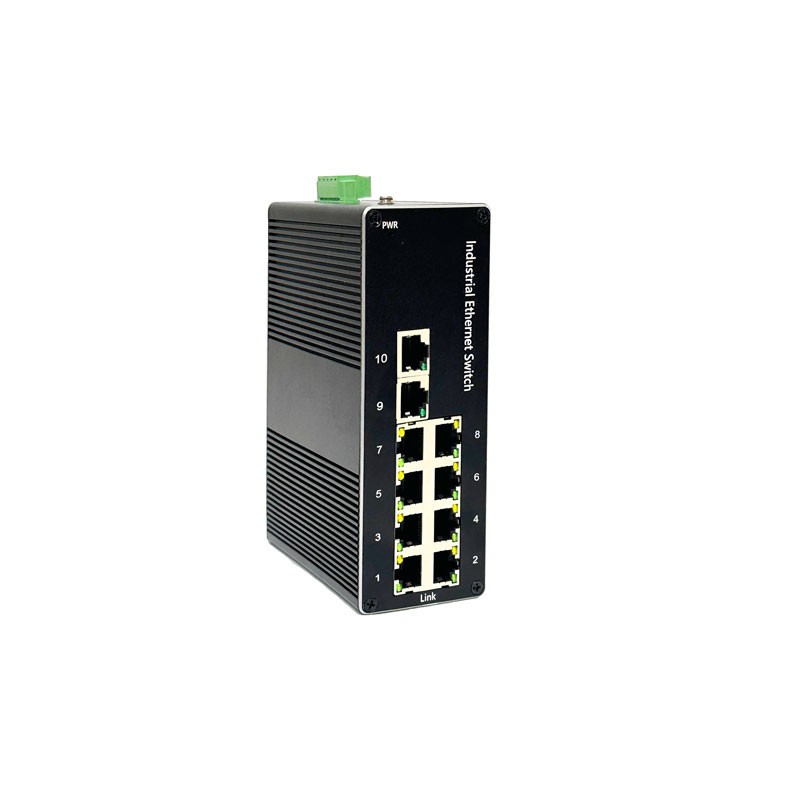

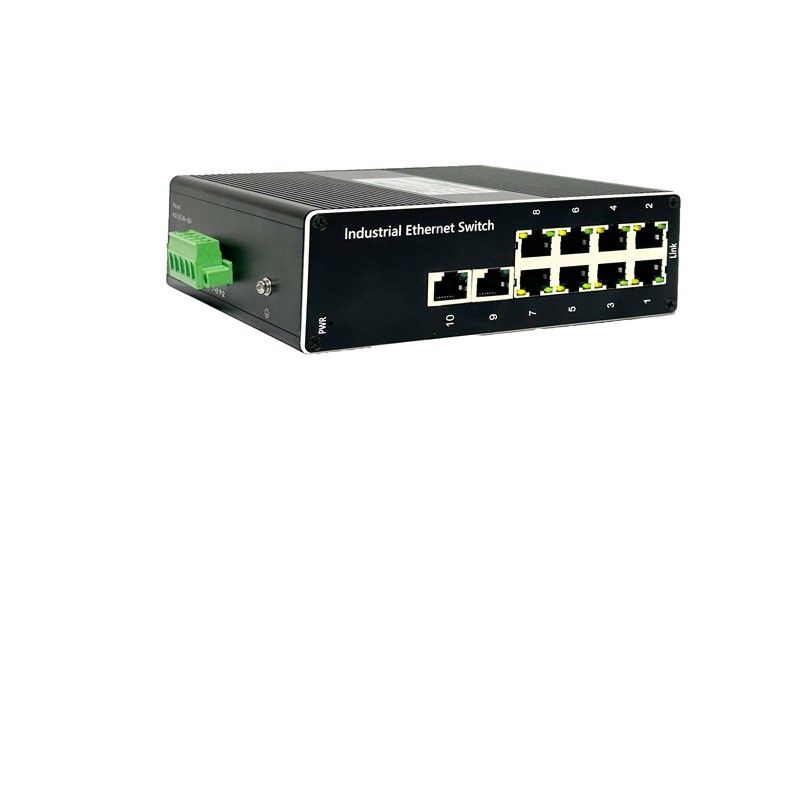

8-10/100Base-TX+2*10/100/1000Base Tx Gigabit unmanaged Industrial Seamless Redundant Switch

8-10/100Base-TX+2*10/100/1000Base Tx Gigabit unmanaged Industrial Seamless Redundant Switch

★ Supports one-click HSR seamless redundant ring protocol and one-click VLAN
★ The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★ Using high-performance chips and the latest industrial design
★ Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★ Wide temperature: -40℃-75℃
★Long service life, 5-year warranty
★Redundant DC12V-52V power supply, support reverse connection protection
★Fanless design, efficient wave-shaped aluminum alloy shell heat dissipation surface.

✪Specifications

Product introduction
Model No.	NEU20100FG
Product description	8-10/100Base-TX+2*10/100/1000Base Tx Gigabit unmanaged Industrial Seamless Redundant Switch
Ethernet interface

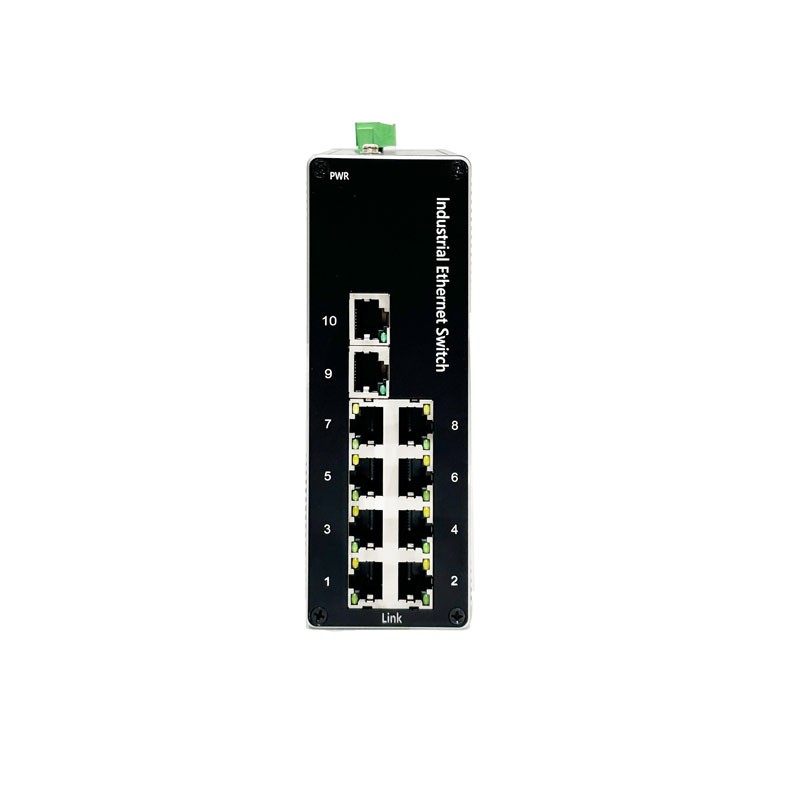

RJ45 Port	8-port 10/100Base-TX+2-port 10/100/1000Base-TX
Port Description	RJ45 port: 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
Power Parameters

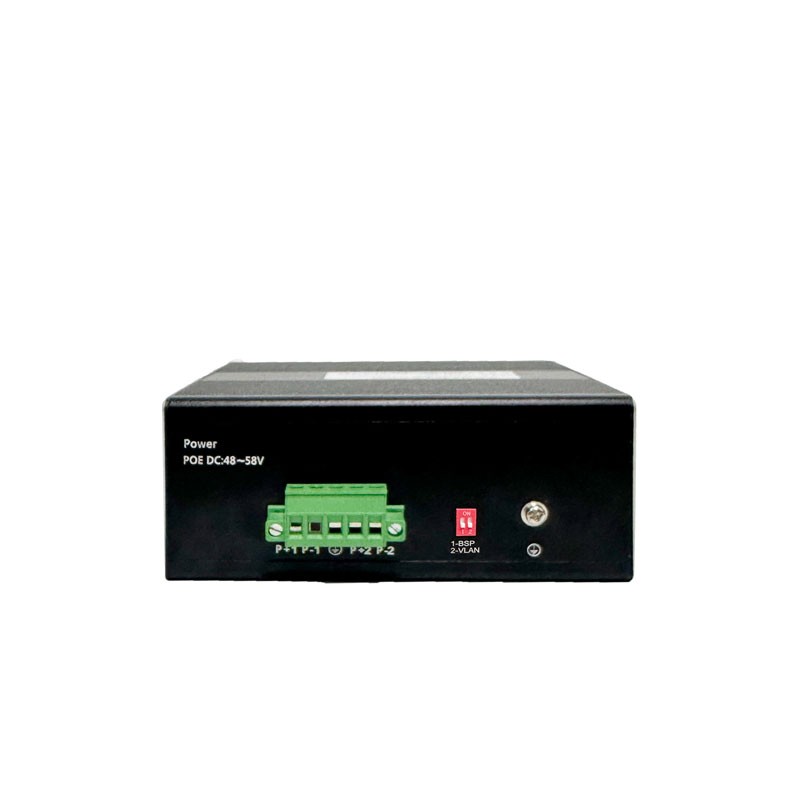

Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC12 to 52V redundant power support reverse connection protection
LED Indicator	l Power indicator light: PWR: Green l Interface indicator light: Green (Data light)
Standards
Network Protocols	IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab logical link discovery protocol、IEEE802.1D-Spanning Tree Protocol、IEEE802.1w-Rapid Spanning Tree Protoco、APS IEEE802.1Q -VLAN Tagging、 IEEE802.1p -Class of Service、IEEE802.1X-Port Based Network Access Contro、IEEE802.3af; IEEE802.3at;
DIP switch	One-click network storm suppression configuration One-click VLAN isolation configuration
Switch Properties
Transmission Method	Store and Forward
MAC Table Size	8K
Packet Buffer Size	4Mbit
Bandwidth	26G
Switching Delay	＜10μs
Power Consume	5W
Physical Characteristics
Protection level	IP40
Enclosure	Wavy aluminum alloy
Installation	Push-in DIN rail
Weigh	1.0kg
Dimensions	150x125x53mm （length x width x height)
Environmental Limits
Working temperature	-40 to 75℃ （-40～167 °F）
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55032 Class A
EMS	IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±8kV indirect discharge, ±15kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±4kV CM/±2kV DM; data: ±6kV CM/ ±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU20100FG switch
Documentation	1 x quick installation guide 1 x warranty card

✪Model Info

Model	Description
NEU20100FG-SFP	8-10/100BaseT Port+2-10/100/1000BaseT port Industrial Ethernet Gigabit series seamless redundant ring network switch, one-click ring network/one-click VLAN Isolation, 35mmDIN rail, DC12~52V power supply, wide temperature: -40℃-75℃.

✪Optional Power adapter

Interface	Model	Features
Quasi-industrial grade 12W power adapter	PDC12V1BI	12W desktop power adapter, desktop 100-240V input AC to DC 12V1A, DC interface.
Quasi-industrial grade 24W power adapter	PDC24V1BI	24W desktop power adapter, desktop 100-240V input AC to DC 24V1A, DC interface.
Industrial grade 24W DIN rail power adapter	PDD24V1AI	Industrial 24W DIN rail power adapter, DIN rail 100-240V input AC to DC 24V1A, AC/DC industrial terminal interface.
