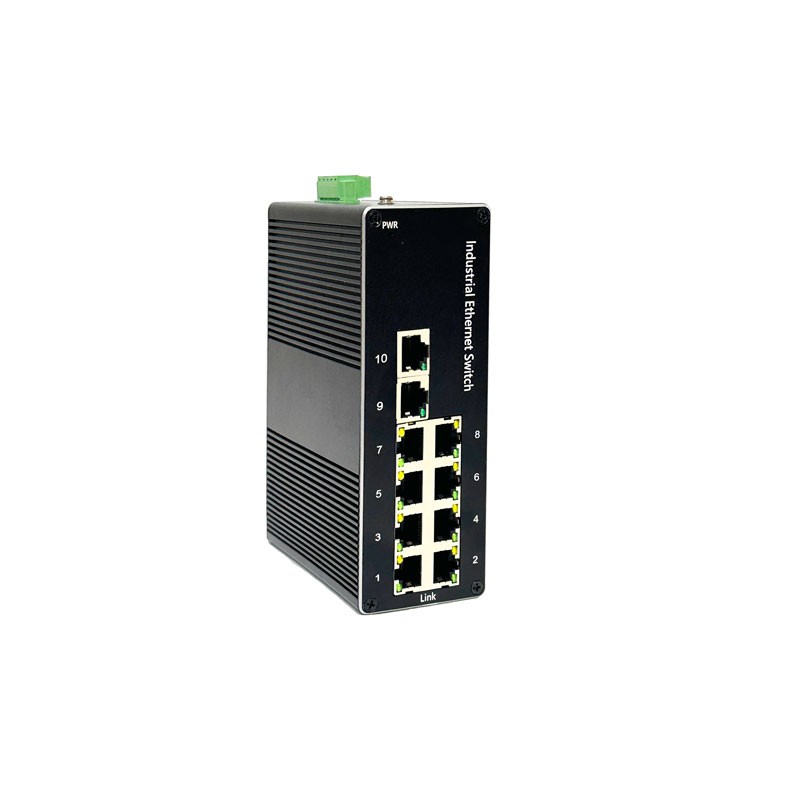

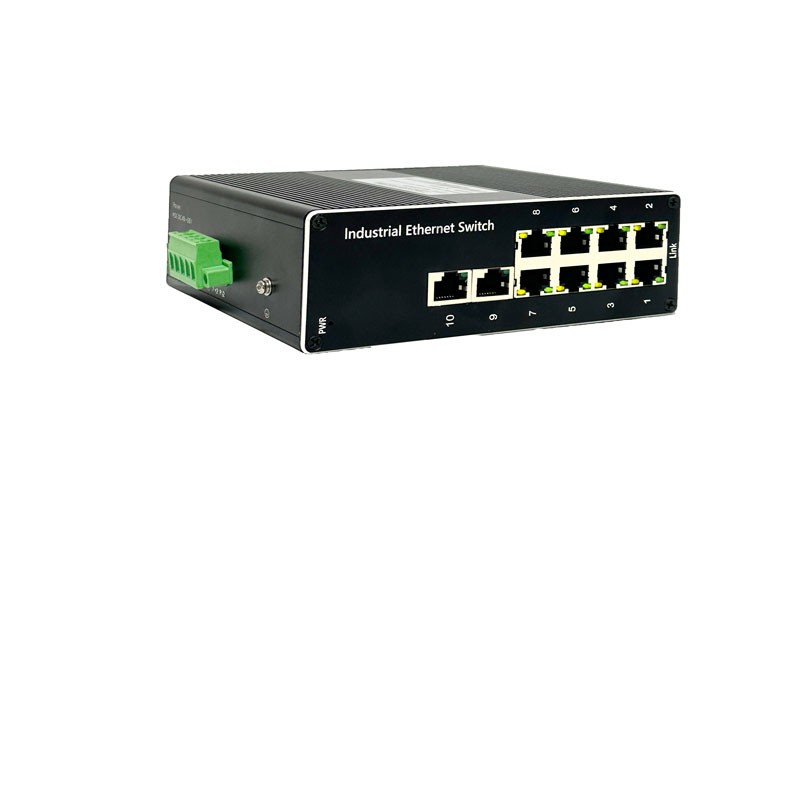

8-10/100Base-TX POE (AF/AT)+2*10/100/1000Base Tx HSR Seamless Redundant Industrial Switch

8-10/100Base-TX POE (AF/AT)+2*10/100/1000Base Tx HSR Seamless Redundant Industrial Switch

★ Supports one-click HSR seamless redundant ring protocol and one-click VLAN
★ The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★ Using high-performance chips and the latest industrial design
★ Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★ Wide temperature: -40℃-75℃
★Long service life, 5-year warranty
★Redundant DC48V-58V power supply, support reverse connection protection
★Fanless design, efficient wave-shaped aluminum alloy shell heat dissipation surface.

✪Specifications

Product introduction
Model No.	NEU20100FGP
Product description	8-10/100Base-TX POE (AF/AT)+2*10/100/1000Base Tx HSR Seamless Redundant Industrial Switch
Ethernet interface
RJ45 Port	8-port 10/100Base-TX+2-port 1000Base-TX
Port Description	RJ45 port: 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
Power Parameters

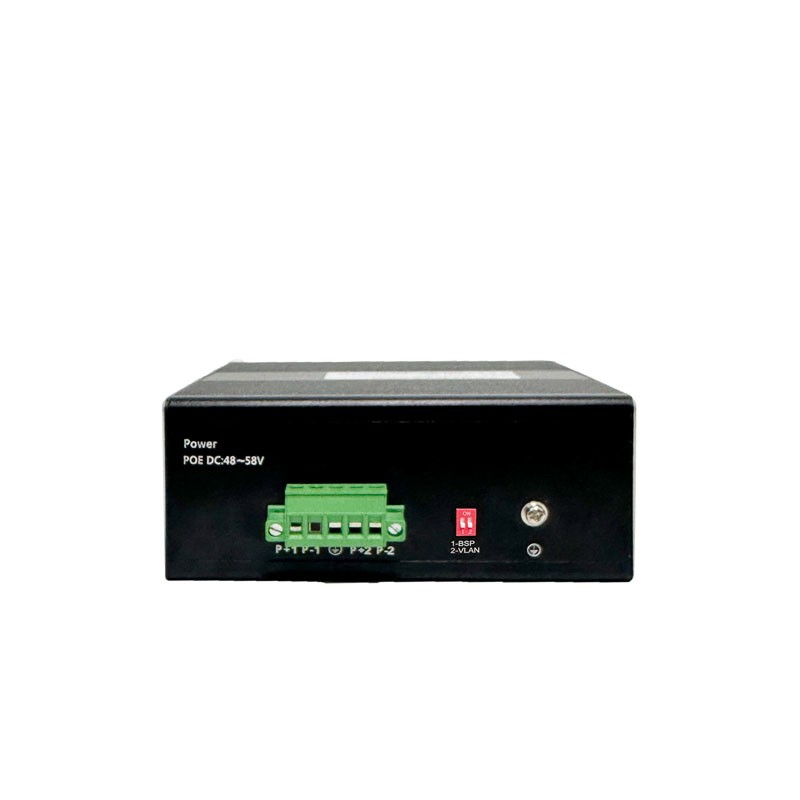

Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC48 to 58V redundant power support reverse connection protection
POE Standard	Output Power : IEEE 802.3af maximum power 15.4W IEEE 802.3at maximum power 30W POE port automatically identifies af/at PoE power supply pin: corresponding pin V+ (1, 2) V- (3, 6)

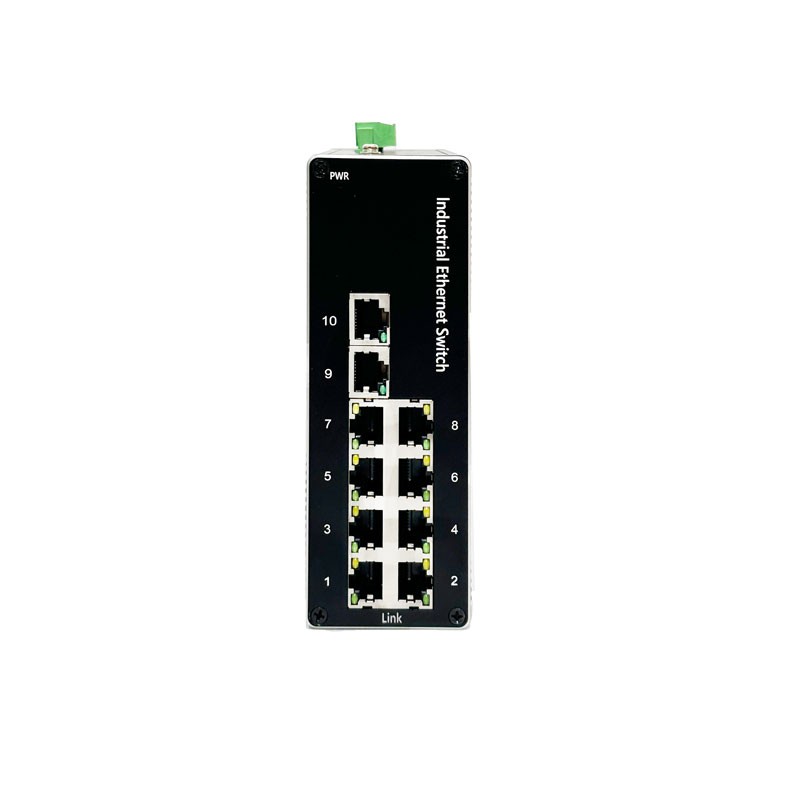

LED Indicator	l Power indicator light: PWR: Red l Interface indicator light: Left of the RJ45: Yello (POE), Right: Green (Data light) l Optical port green Ulink/act indicator light
Standards
Network Protocols	IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab logical link discovery protocol、IEEE802.1D-Spanning Tree Protocol、IEEE802.1w-Rapid Spanning Tree Protoco、APS IEEE802.1Q -VLAN Tagging、 IEEE802.1p -Class of Service、IEEE802.1X-Port Based Network Access Contro、IEEE802.3af; IEEE802.3at;
Switch Properties
Transmission Method	Store and Forward
MAC Table Size	8K
Packet Buffer Size	4Mbit
Bandwidth	26G
Switching Delay	＜10μs
Power Consume	245W
Physical Characteristics
Protection level	IP40
Enclosure	Wavy aluminum alloy
Installation	Push-in DIN rail
Weigh	1.0kg
Dimensions	150x125x53mm （length x width x height)
Environmental Limits
Working temperature	-40 to 75℃ （-40～167 °F）
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55032 Class A
EMS	IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±8kV indirect discharge, ±15kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±4kV CM/±2kV DM; data: ±6kV CM/ ±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU20100FGP switch
Documentation	1 x quick installation guide 1 x warranty card

✪Model Info

Model	Description
NEU20100FGP-SFP	HSR Seamless Redundan 8-10/100Base-TX POE (AF/AT)+2*1G RJ45 port Gigabit unmanaged Industrial POE Switch, one-click ring network/one-click VLAN Isolation, 35mmDIN rail design, DC48~58V power supply, wide temperature (-40℃-75℃).
