HSR seamless redundant 8-10/100BaseT Port+2-10/100/1000BaseT+ 2*1G SFP port Gigabit Industrial switch

HSR seamless redundant 8-10/100BaseT Port+2-10/100/1000BaseT+ 2*1G SFP port Gigabit Industrial switch

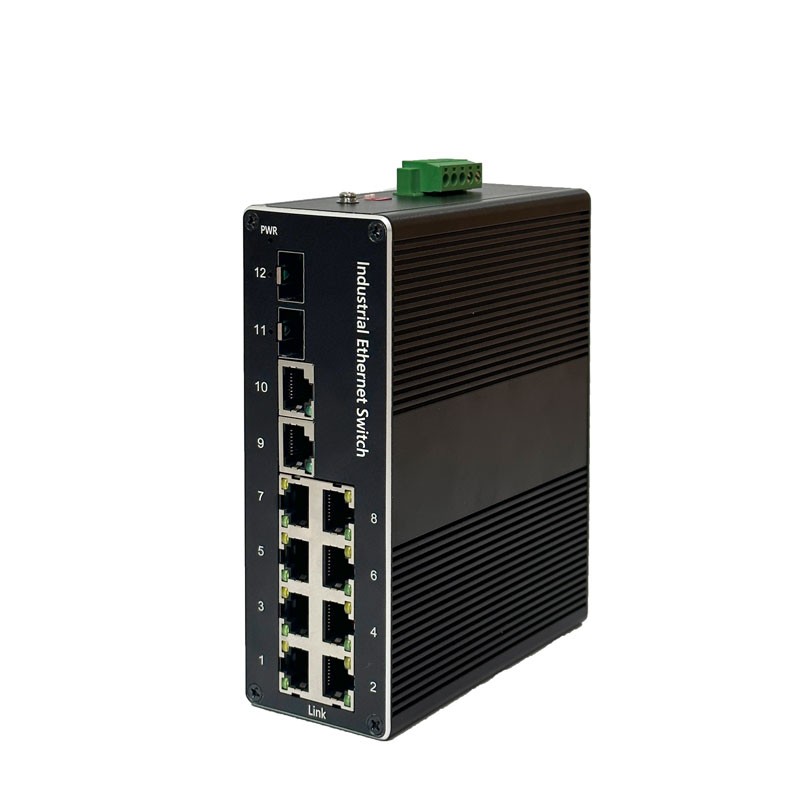

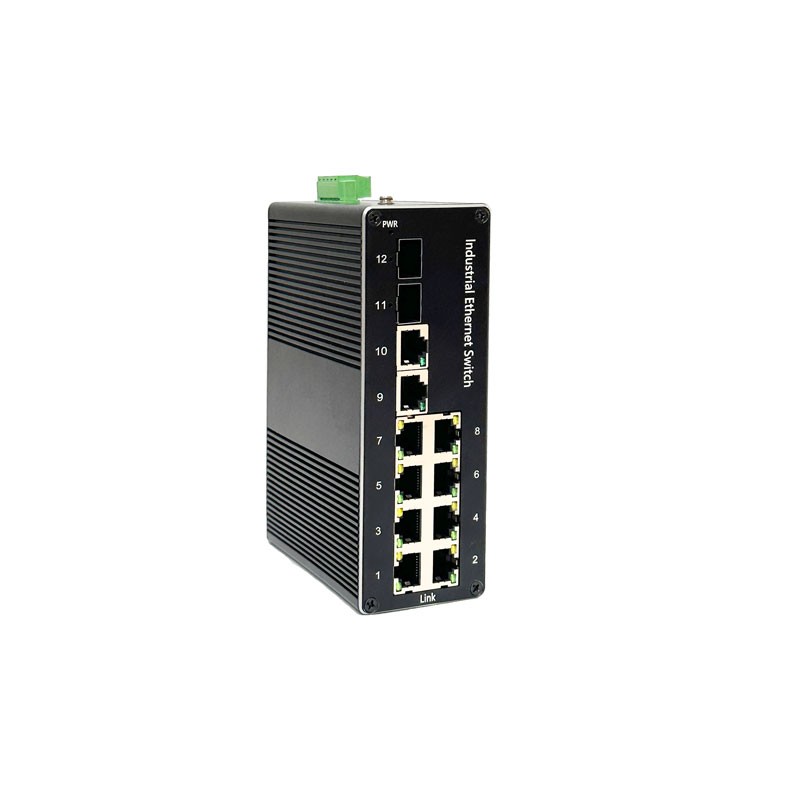

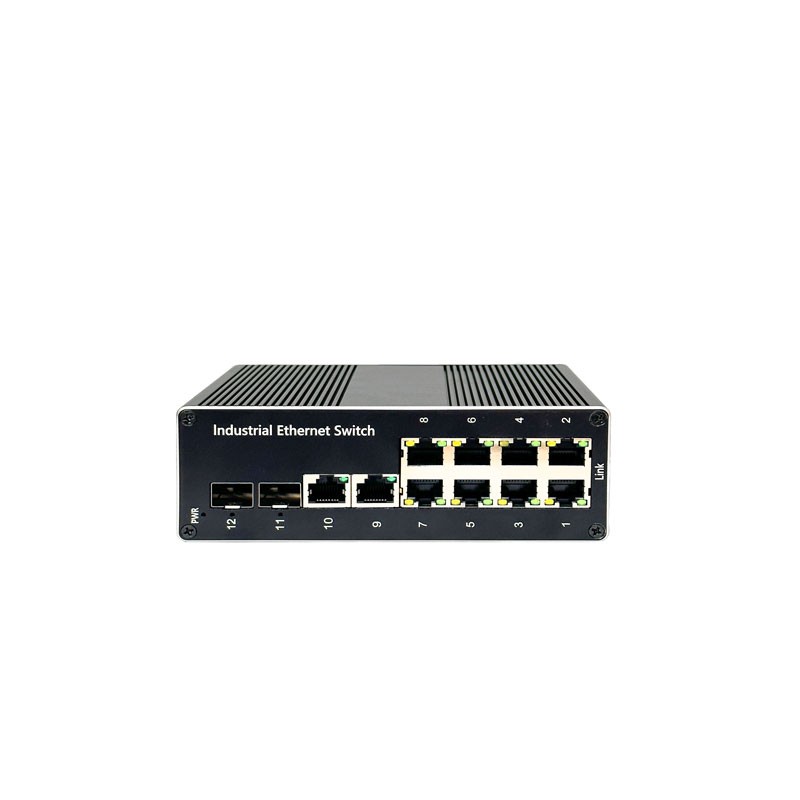

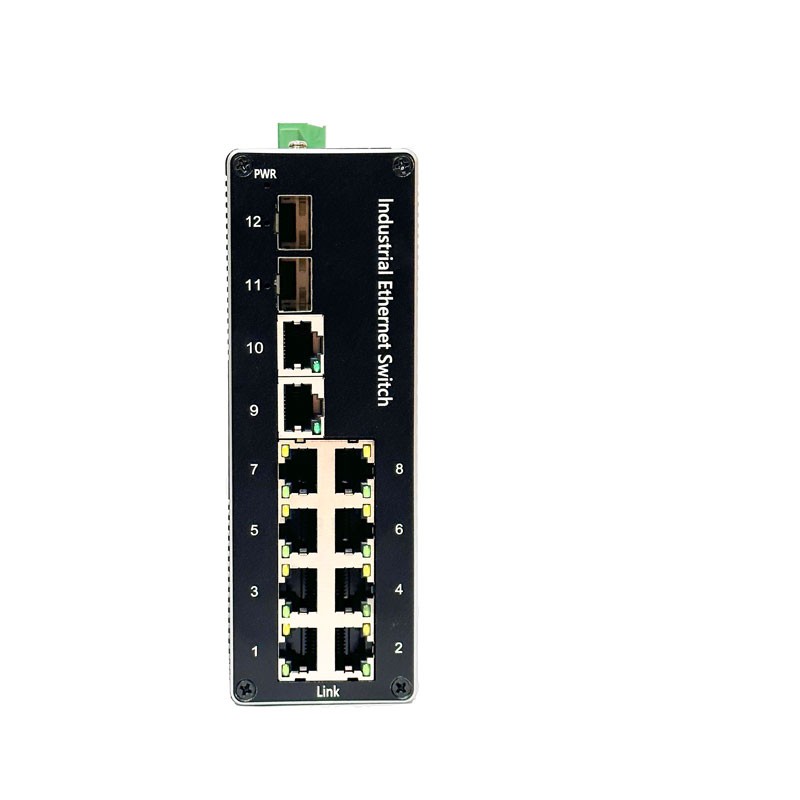

The NEU20102FG series is a photoelectric convergence integrated industrial Ethernet seamless redundant ring switch independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks, chain networks and ring networks in the industrial field. Equipped with 8 10/100Base-TX RJ45 + 2 10/100/1000 Base-TX RJ45, 2 1000Base-FX optical ports (SC, ST, FC, SFP optional), supporting one-click HSR for high reliability Seamless redundancy protocol, one-click VLAN, plug and play, no configuration required, simple and convenient to use.
HSR ring topology with one click, zero recovery time, support 50 nodes, convergence time ≤6MS, 5,000 times faster than RSTP.
All ports support full line-speed forwarding, and its high-performance switching engine. The product has a high-performance industrial switch chip engine, with an IP40 protection level of the compact shell, the adoption of fan-free efficient heat dissipation design and corrugated aluminum alloy shell, with excellent surge protection and EMC protection performance, to make products work efficiently in harsh industrial environments. The compact size of the gigabit speed allows for fast rail installation in tight spaces. And it can provide a reliable and convenient solution for the users’ Ethernet equipment networking.

◎Specifications

Product introduction
Model No.	NEU20102FG
Product description	8-10/100Base-TX +2*1G SFP Gigabit Management Industrial Switch
Ethernet interface
RJ45 Port	8-port 10/100Base-TX +2-port 1000Base-TX
Optical port	2-port 1000Base-FX
Port Description	RJ45 port: 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive Optical port: 1000BaseFX port (SFP)
Power Parameters

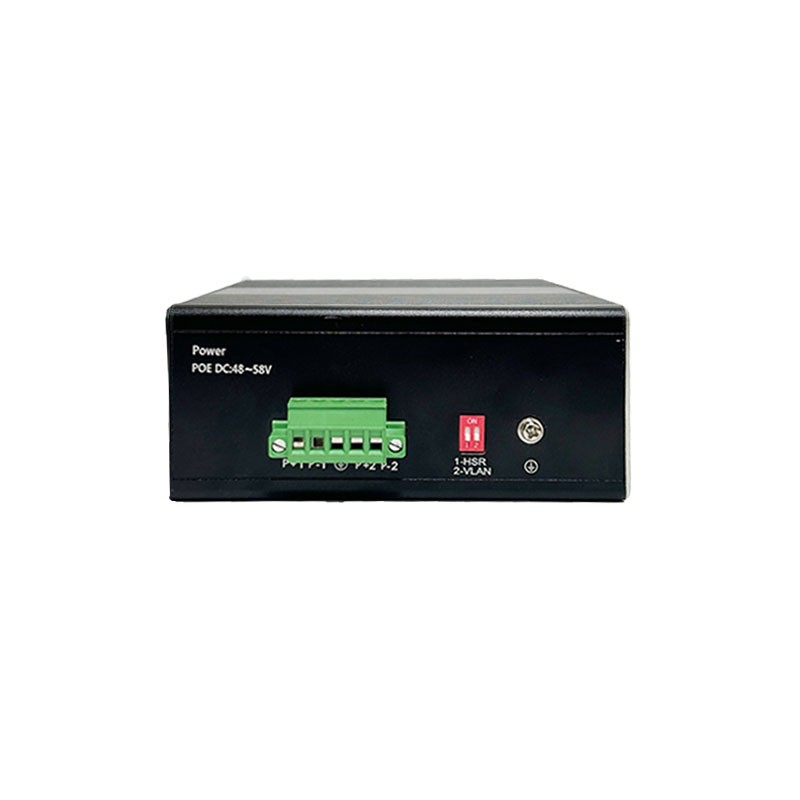

Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC48 to 58V redundant power support reverse connection protection
LED Indicator	l Power indicator light: PWR: Green l Interface indicator light: Right of the RJ45: Green (Data light) l Optical port green Ulink/act indicator light
Standards
Network Protocols	IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab logical link discovery protocol、IEEE802.1D-Spanning Tree Protocol、IEEE802.1w-Rapid Spanning Tree Protoco、APS IEEE802.1Q -VLAN Tagging、 IEEE802.1p -Class of Service、IEEE802.1X-Port Based Network Access Contro、IEEE802.3af; IEEE802.3at;
Switch Properties
Transmission Method	Store and Forward
MAC Table Size	8K
Packet Buffer Size	4.1Mbit
Bandwidth	26G
Switching Delay	＜10μs
Power Consume	5W
Physical Characteristics
Protection level	IP40
Enclosure	Wavy aluminum alloy
Installation	Push-in DIN rail
Weigh	1.0kg
Dimensions	150x125x53mm （length x width x height)
Environmental Limits
Working temperature	-40 to 75℃ （-40～167 °F）
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55032 Class A
EMS	IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±8kV indirect discharge, ±15kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±4kV CM/±2kV DM; data:±6kV CM/ ±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU20102FGP switch
Documentation	1 x quick installation guide 1 x warranty card

◎ Model Info.

Model	Description
NEU20102FGP-SFP	HSR seamless redundant 8-10/100BaseT Port+2-10/100/1000BaseT+ 2*1G SFP port Gigabit Industrial PoE switch, one-click ring network/one-click VLAN Isolation, 35mmDIN rail, DC12~52V power supply, wide temperature (-40℃-75℃).
