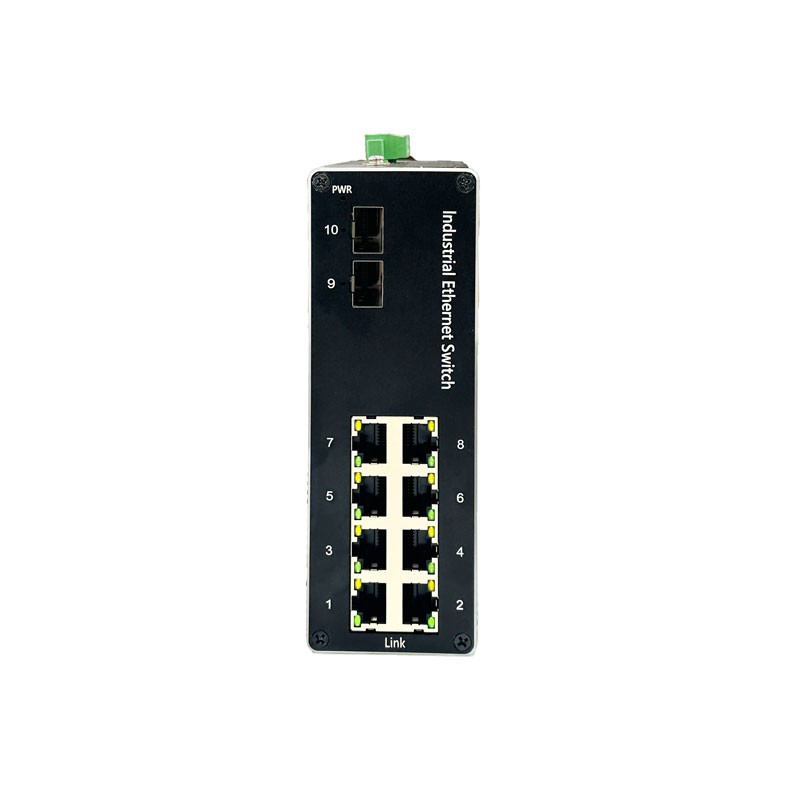

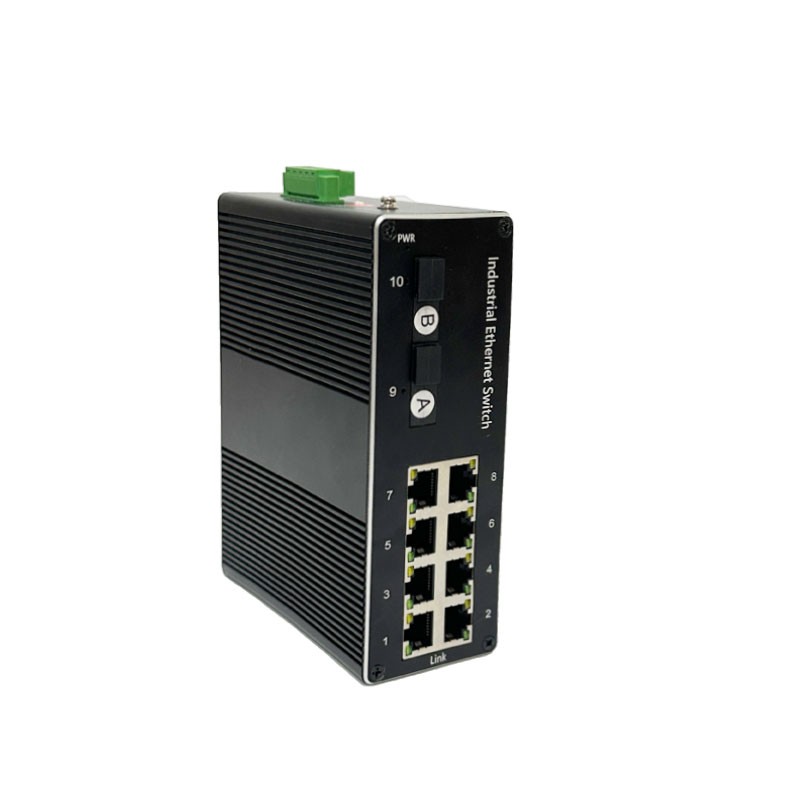

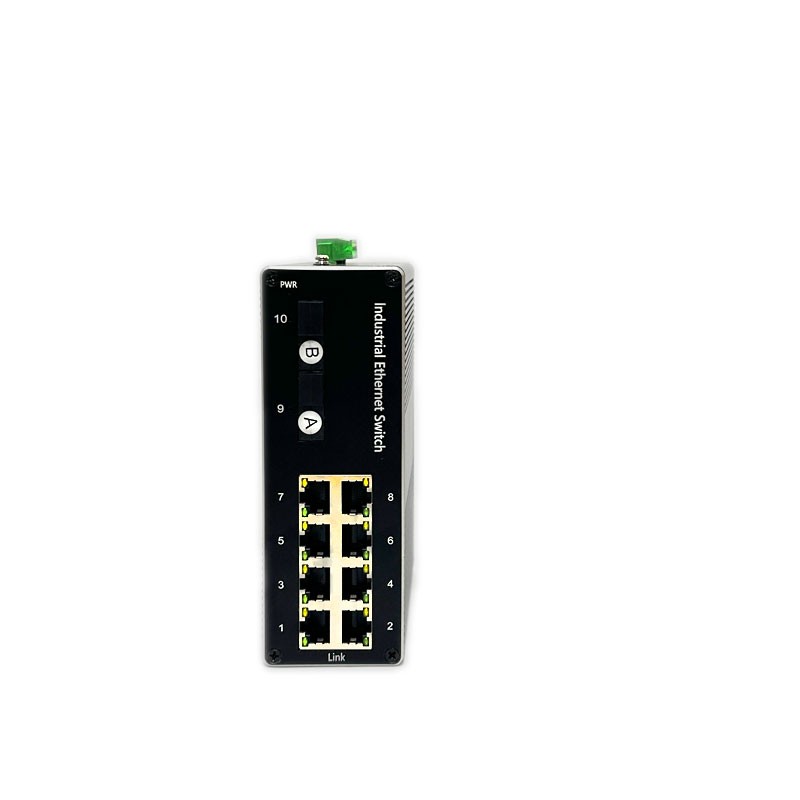

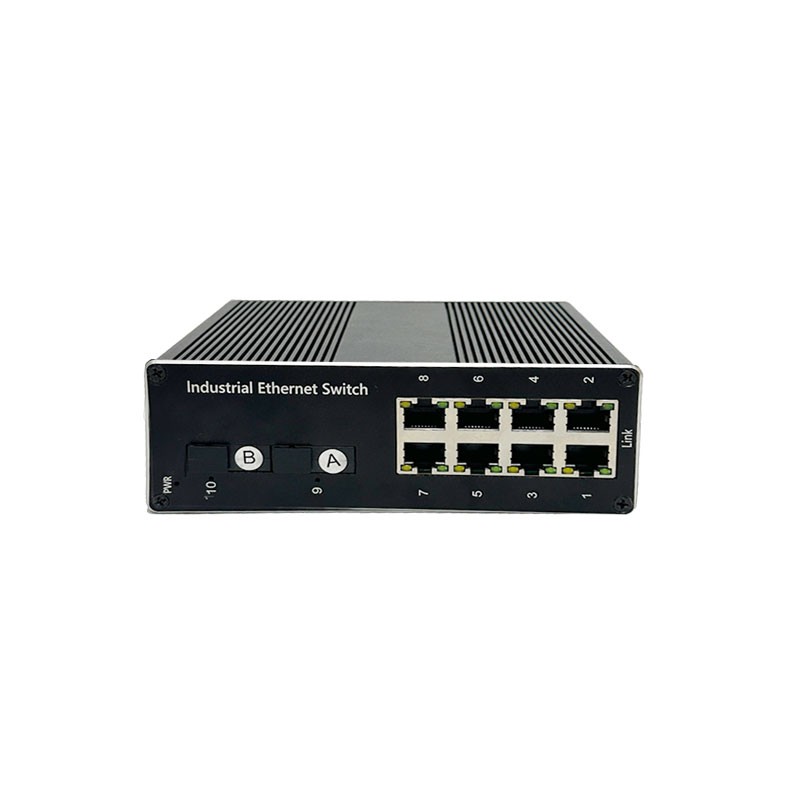

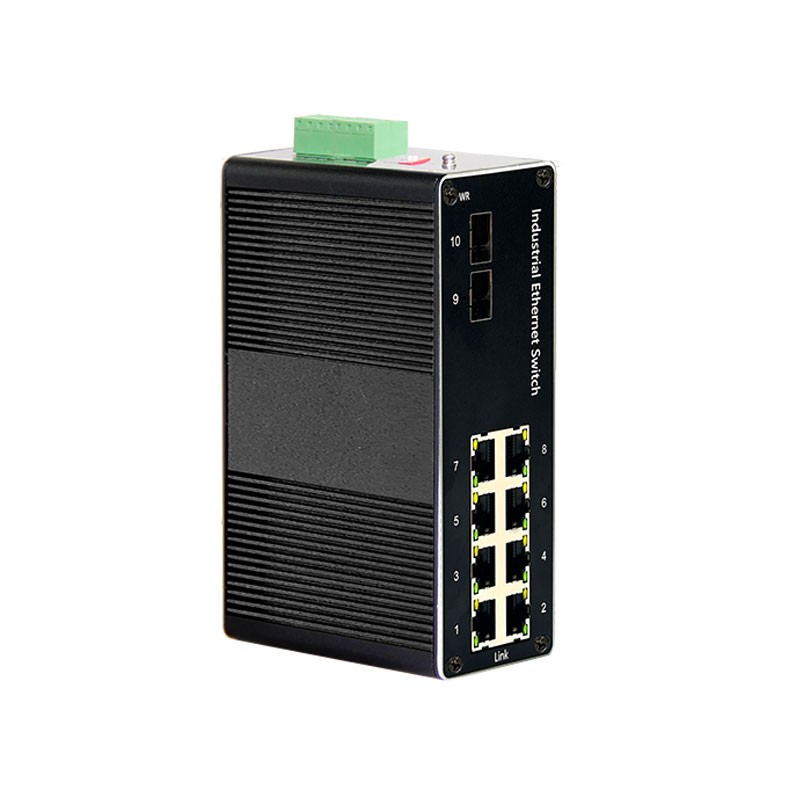

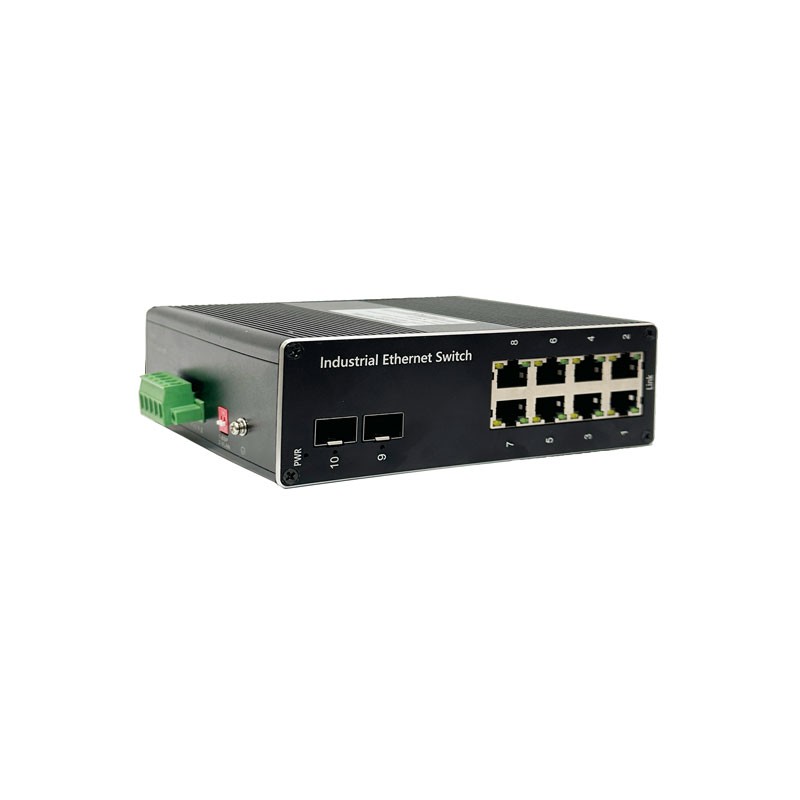

8-10/100Base-TX PoE+2*1G SFP Gigabit unmanaged Seamless redundant ring network Industrial PoE Switch

Model No.

NEU2082FGP

Product description

8-10/100Base-TX POE (AF/AT)+2*1G SFP Gigabit unmanaged Industrial POE Switch

Ethernet interface

RJ45 Port

8-port 10/100Base-TX

Optical port

2*1G SFP

Port Description

RJ45 port: 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optical port: 2*1G SFP

Power Parameters

Power

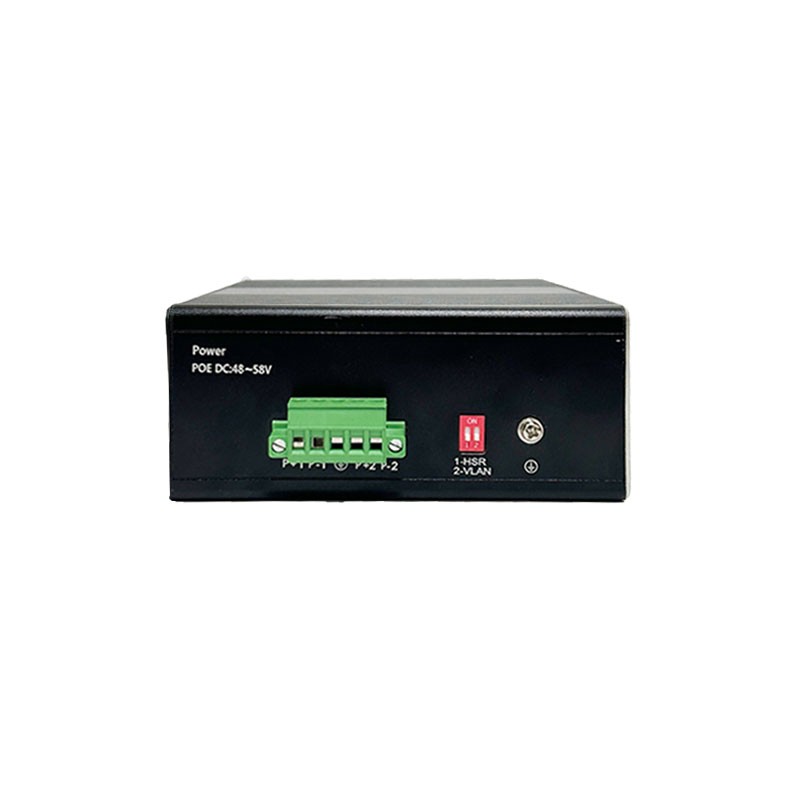

Connection: 1 removable 5-contact terminal block(s)

Input voltage: DC48 to 58V redundant power support reverse connection protection

POE Standard

Output Power :

IEEE 802.3af maximum power 15.4W

IEEE 802.3at maximum power 30W

POE port automatically identifies af/at

PoE power supply pin: corresponding pin V+ (1, 2) V- (3, 6)

LED Indicator

l Power indicator light: PWR: Green

l Interface indicator light:

Left of the RJ45: Yello (POE), Right: Green (Data light)

l Optical port green Ulink/act indicator light

Standards

Network Protocols

IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab logical link discovery protocol、IEEE802.1D-Spanning Tree Protocol、IEEE802.1w-Rapid Spanning Tree Protoco、APS
IEEE802.1Q -VLAN Tagging、 IEEE802.1p -Class of Service、IEEE802.1X-Port Based Network Access Contro、IEEE802.3af; IEEE802.3at;

DIP switch

One-click network storm suppression configuration

One-click VLAN isolation configuration

Switch Properties

Transmission Method

Store and Forward

MAC Table Size

8K

Packet Buffer Size

4Mbit

Bandwidth

26G

Switching Delay

＜10μs

Power Consume

245W

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

Installation

Push-in DIN rail

Weigh

1.0kg

Dimensions

150x125x53mm （length x width x height)

Environmental Limits

Working temperature

-40 to 75℃ （-40～167 °F）

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD):±8kV Contact,±8kV indirect，±15kV Air discharge

IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV

IEC(EN)61000-4-5(Surge): power:±4kV CM/±2kV DM; data:±6kV CM/±4kV DM

IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5years

Package Contents

Device

1 x NEU2082FGP switch

Documentation

1 x quick installation guide

1 x warranty card

Quasi-industrial grade 120W power adapter

PDC52V23ACI

120W desktop power adapter, desktop 100-240V input AC to DC 52V2.3A, DC interface.

Industrial grade 120W DIN rail power adapter

PDD48V25DCI

Industrial 120W DIN rail power adapter, DIN rail 115-230V input AC to DC 48V2.5A, AC/DC industrial terminal interface..

NEU2082FGP-SFP

8-802.3af/at PoE 10/100BaseT Port+2-10/100/1000M SFP Industrial Ethernet Gigabit series seamless redundant ring network POE switch, one-click ring network/one-click VLAN Isolation, 35mmDIN rail design, DC48~58V power supply, wide temperature (-40℃-75℃).

NEU2082FGP-SC20

8-802.3af/at PoE 10/100BaseT Port+2-10/100/1000M optical 1*9 (Single Mode(Tx/Rx1310mm), Dual, SC20km) Gigabit Unmanaged Industrial PoE switch - one-click ring network/one-click VLAN Isolation, 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

NEU2082FGP-SC20AB

8-802.3af/at PoE 10/100BaseT Port+2-10/100/1000M optical 1*9 (Single Mode(Rx1310mm A/TX1550nm B), Single, SC20km) Gigabit Unmanaged Industrial PoE switch - one-click ring network/one-click VLAN Isolation, 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

NEU2082FGP-ST20

8-802.3af/at PoE 10/100BaseT Port+2-10/100/1000M optical 1*9 (Single Mode(Tx/Rx1310nm), Dual, ST20km) Gigabit Unmanaged Industrial PoE switch - one-click ring network/one-click VLAN Isolation, 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

NEU2082FGP-ST20AB

8-802.3af/at PoE 10/100BaseT Port+2-10/100/1000M optical 1*9 (Single Mode(Rx1310mm A/TX1550nm B), Single, ST20km) Gigabit Unmanaged Industrial PoE switch - one-click ring network/one-click VLAN Isolation, 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

NEU2082FGP-FC20

8-802.3af/at PoE 10/100BaseT Port+2-10/100/1000M optical 1*9 (Single Mode(Tx/Rx1310nm), Dual, FC20km) Gigabit Unmanaged Industrial PoE switch - one-click ring network/one-click VLAN Isolation, 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃
